Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 750VDC | Rated Current:: | 400A |
| Breaking Capacity:: | DC10KA | Standard:: | UL248-13、ISO8820、 JASO-D622、IEC60269、ROHs |
| Usage:: | EV,Semiconductor Protection,Charging Pile | Keyword：: | Semiconductor Protection Fuse |
| High Light: | 750VDC Semiconductor Fuses,IEC60269 Semiconductor Fuses,IEC60269 400a dc fuse |
||

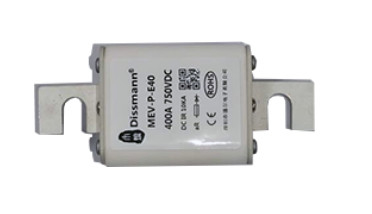

EV Fuse 400amps Fuse European Square Fuse Semiconductor Protection Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Automotive Cartridge Fuse
Many kinds of Automotive Cartridge Fuse
Current rating:400A
Voltage rating: 750VDC
Breaking capacity:DC10KA
Product Presentation:
|
Rated Voltage |
DC750V,AC690V or lower |
Type Protection |
aR |
| Rated Current | 40A-630A |
Breaking Capacity |
DC10KA (time constant≤10ms) |
|
Meet the Requirement
|
UL248-13,ISO8820,JASO-D622,IEC60269 EU and RoHS Directive |
Remarks |
— |
Overall dimensions of the product(mm)
Product type:
|
Model |
Product code |
Rated current (A) |
I²t(A²Sec) |
Power consumption (W) |
|
| Pre-Arc | After-Arc | ||||
| MEV-P-E40 | MEV-P-E40-40 | 40A | 40 | 270 | 9 |
| MEV-P-E40-50 | 50A | 77 | 515 | 11 | |
| MEV-P-E40-63 | 63A | 115 | 770 | 14 | |
| MEV-P-E40-80 | 80A | 185 | 1250 | 18 | |
| MEV-P-E40-100 | 100A | 360 | 2450 | 21 | |
| MEV-P-E40-125 | 125A | 550 | 3700 | 26 | |
| MEV-P-E40-160 | 160A | 1100 | 7500 | 30 | |
| MEV-P-E40-200 | 200A | 2200 | 15000 | 35 | |
| MEV-P-E40-250 | 250A | 4200 | 28500 | 40 | |
| MEV-P-E40-315 | 315A | 7000 | 46500 | 50 | |
| MEV-P-E40-350 | 350A | 10000 | 68500 | 55 | |
| MEV-P-E40-400 | 400A | 15000 | 105000 | 60 | |
| MEV-P-E40-450 | 450A | 21000 | 140000 | 65 | |
| MEV-P-E40-500 | 500A | 27000 | 180000 | 70 | |
| MEV-P-E40-550 | 550A | 34000 | 230000 | 75 | |
| MEV-P-E40-630 | 630A | 48500 | 325000 | 80 | |
