Product Details:
|
| Rated Voltage: | 80VDC | Rated Current: | 40A-500A |
|---|---|---|---|
| Protection Type: | AR | Breaking Capacity: | DC2700A |
| UL Certification No.: | E496054 | ||
| High Light: | DC80V Automotive Fuse,Bolted Ceramic Electric Vehicle Fuses |
||
Dimension of the fuse:
When the rated current is ≥225A,the contact foot will thicker to 1.5mm
Product type:
| DNN-E 80VDC | Standard Performance | ||||
| Product code | Rated Current A |
Load(Testing current) | Opening Time (Sec) | ||
| Mini Time | Max Time | ||||
| DNN-E-40 | 40 | 100% | 14400 | ∞ | |
| DNN-E-50 | 50 | ||||
| DNN-E-60 | 60 | ||||
| DNN-E-70 | 70 | ||||
| DNN-E-80 | 80 | ||||
| DNN-E-100 | 100 | ||||
| DNN-E-125 | 125 | 200% | 0 | 100% | |
| DNN-E-150 | 150 | ||||
| DNN-E-175 | 175 | ||||
| DNN-E-200 | 200 | ||||
| DNN-E-225 | 225 | ||||
| DNN-E-250 | 250 | ||||
| DNN-E-300 | 300 | 600% | 0 | 1 | |
| DNN-E-350 | 350 | ||||
| DNN-E-400 | 400 | ||||
| DNN-E-450 | 450 | ||||
| DNN-E-500 | 500 | ||||
SCOPE OF APPLICATION:
DC voltage of 80VDC and below
The rated voltage of this product is 80VDC, which is used in circuits with actual working voltage lower than or equal to 80VDC. If it is used in the working voltage environment with a voltage higher than the rated 80VDC of this product, it may cause serious adverse consequences, and our company will not bear any responsibility.
INSTALLATION REQUIREMENTS
Mounting bolt M8, recommend torque 11N·m

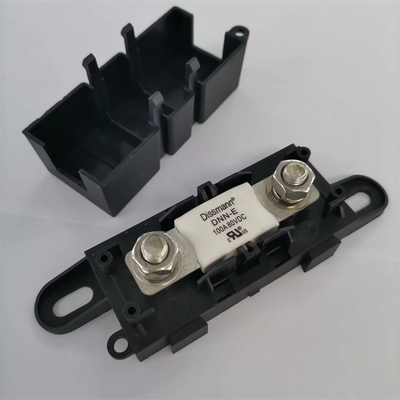

Matched base of the DNN-E DC80V fuse:
This 80vdc fuse are equal to MEGA fuse.
