DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM

DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM
DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM

Large Image :  DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM

Product Details:
Place of Origin: Shenzhen China
Brand Name: Dissmann
Certification: UL248-20、ISO8820、JAS0-D622、RoHS
Model Number: HEV-J-Q DC1000V
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs

DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM

Description
Color: White Material: Fiber Tube
Rated Voltage: DC1000V Rated Current: 5A-800A
Protection Type: AR Breaking Capacity: AC100KA/DC30KA(Time Constant ≤15ms)
High Light:

DC1000V HEV Fuse

,

RS309-MM High Breaking Capacity Fuse

Dissmann®  DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM Series Fuse



DC1000V Dissmann HEV Fuse High Breaking Capacity Fuse Equal to SINOFUSE RS309-MM 0

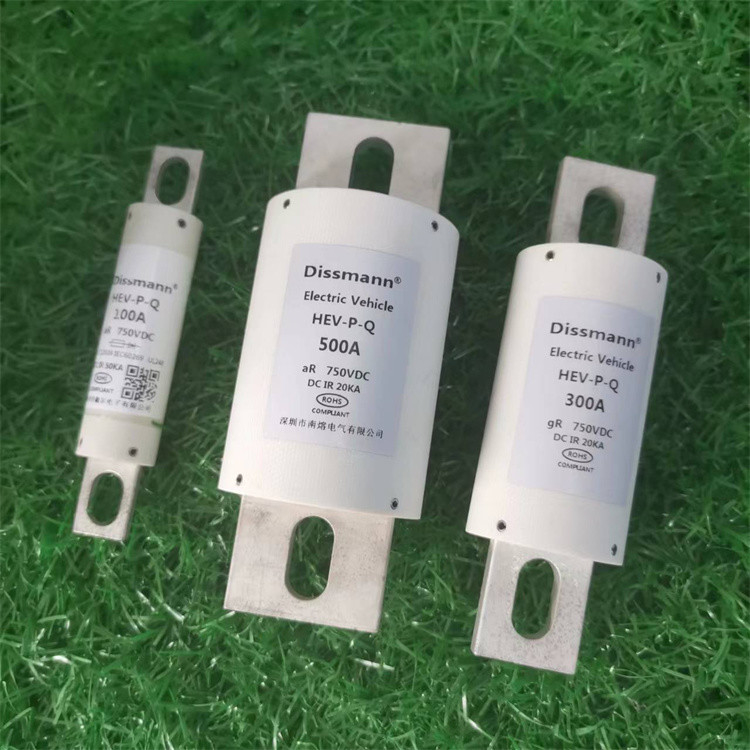

HEV FUSES IN DIFFERENT AMP 500A/300/100A



Basic information of the AC/DC1000V HEV fuse:

  • Type:automobile fuse (bolt type installation)
  • Dimensions and performance conforming to UL248
  • Rated voltage: AC/DC1000V,
  • Rated current: 5A~800A,
  • Breaking capacity: AC100KA, DC30KA (time constant ≤15ms)
  • Conform to EU and China RoHS directives
  • The executive standard is UL248-20,ISO8820,JASO-D622

Physics drawing of the dimension of the HEV-J-Q series fuse:

DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified Made in China

Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33


Ordinary produc type you can choose from our factory,and the fuses are equal to SINOFUSE RS309-MM series fuse:

HEV-J-Q 1000VDC/AV (5A-800A) Equal to SINOFUSE
Product code Rated Current I²t(A²Sec) power consumption Size code RS309-MM series Fuse
A Pre-arc Total W
HEV-J-Q-5 5A 20 115 1.8 HF1 RS30-MM-5A
HEV-J-Q-10 10A 30 170 2.2 RS30-MM-10A
HEV-J-Q-15 15A 48 220 3.1 RS30-MM-15A
HEV-J-Q-20 20A 72 360 3.6 RS30-MM-20A
HEV-J-Q-25 25A 85 510 4.2 RS30-MM-25A
HEV-J-Q-30 30A 110 830 5.1 RS30-MM-30A
HEV-J-Q-35 35A 180 1250 6.3 RS30-MM-35A
HEV-J-Q-40 40A 290 1650 7.8 RS30-MM-40A
HEV-J-Q-45 45A 350 1900 8.5 RS30-MM-45A
HEV-J-Q-50 50A 440 2450 10.0 RS30-MM-50A
HEV-J-Q-60 60A 600 3500 12.5 RS30-MM-60A
HEV-J-Q-70 70A 820 5500 14.0 RS30-MM-70A
HEV-J-Q-80 80A 1050 6500 16.0 RS30-MM-80A
HEV-J-Q-90 90A 1800 10500 17.0 HF2 RS30-MM-90A
HEV-J-Q-100 100A 2300 12000 18.0 RS30-MM-100A
HEV-J-Q-125 125A 3400 21000 20.0 RS30-MM-125A
HEV-J-Q-150 150A 4900 25500 27.0 RS30-MM-150A
HEV-J-Q-175 175A 9200 40000 30.0 HF3 RS30-MM-175A
HEV-J-Q-200 200A 15000 60000 32.0 RS30-MM-200A
HEV-J-Q-225 225A 19000 105000 40.0 RS30-MM-225A
HEV-J-Q-250 250A 24000 113000 47.0 RS30-MM-250A
HEV-J-Q-275 275A 25000 130000 49.0 RS30-MM-275A
HEV-J-Q-300 300A 26000 160000 52.0 RS30-MM-300A
HEV-J-Q-325 325A 33000 180000 55.0 RS30-MM-325A
HEV-J-Q-350 350A 42000 230000 60.0 HF4 RS30-MM-350A
HEV-J-Q-400 400A 71000 320000 65.0 RS30-MM-400A
HEV-J-Q-450 450A 78000 300000 80.0 RS30-MM-450A
HEV-J-Q-500 500A 105000 350000 95.0 RS30-MM-500A
HEV-J-Q-600 600A 163000 530000 105.0 HF5 RS30-MM-600A
HEV-J-Q-700 700A 320000 680000 155.0 RS30-MM-700A
HEV-J-Q-800 800A 420000 870000 185.0 RS30-MM-800A



More automotive fuses for the electric vehicle:



DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified Made in China

More other fuses and fuse holder you can choose from our factory:

DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified Made in China

The products list showed as below:

1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
