Product Details:
|
| Material: | Glass Fiber | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | DC/AC1000V |
| Type Protection: | AR | Breaking Capacity: | AC100KA、DC30KA |
| Keyword: | EV Fast Charger Fuse | Related Standard: | TUV、ISO8820、RoHS Compliant、UL248 |
| High Light: | 1000VDC Bolt Type Fuse,TUV Standard EV Fuse |
||

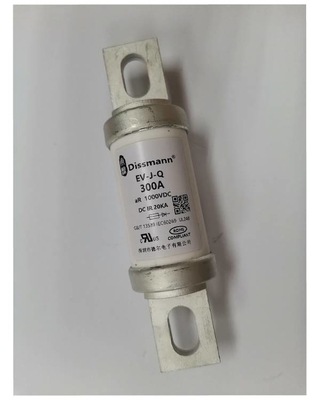

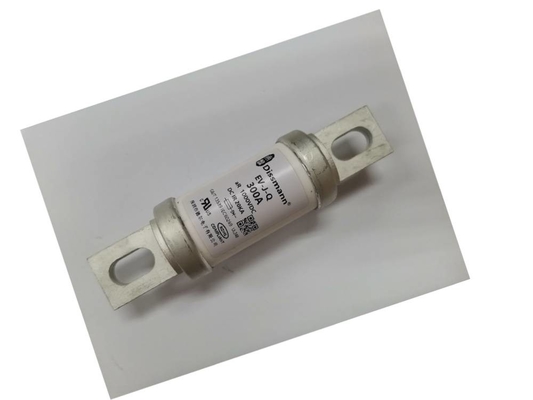

China famous 1000VDC HEV fuse designed for fast charger protection
Application of the 1000VDC fuse
This series of products are round-tube bolt-connected fuses, which have the characteristics of small size, fast blowing, low I2t, and high reliability. It is suitable for short-circuit and backup protection of semiconductor devices such as frequency converters, rectifiers, inverters, various power supplies, as well as power batteries, motors, capacitors, wires and other equipment and devices. This product has good anti-vibration and flame-retardant properties, and is suitable for applications in vibration environments such as rail transit and motor vehicles.
Feature of the 300 amp HEV fuse
| Model | Rated Current(A) | 100% voltage drop (mv) | Size code | Installation |
| HEV-J-Q-300 | 300 | 298 | HF3 |
Mounting Bolt M10, Recommend Torque: 21N.m |
Material of the HEV fuse
Material of the HEV fuse
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
Packaging Quantity of 300 amp HEV fuse
HF4: 2 fuse links per plastic box.
Each long box is packed with 1 plastic box, a total of 2 fuse links, the size of the long box is 156mm long x 120mm wide x 54mm high.
Each large box contains 20 long strip boxes, a total of 40 fuse links, the size of the large box is 342mm long x 258mm wide x 285mm high.
Ambient Air Temperature
FAQ
Question:Do your mini car balde fuses have UL certification?
Answer:Yes,this 32VDC mini car blade fuse approve by UL248 standard.
