Product Details:
|
| Material: | Ceramic | Rated Current: | 10A-800A |
|---|---|---|---|
| Rated Voltage: | AC/DC1000V | Breaking Capacity: | AC100KA/DC20KA |
| Type Protection: | AR | Application: | Battery,EV Charger |
| Related Standard: | UL248 | Keyword: | EV Charger Fuse |
| High Light: | 1000VDC Fast Acting Fuse,UL248 Standard Fast Acting Fuse |
||

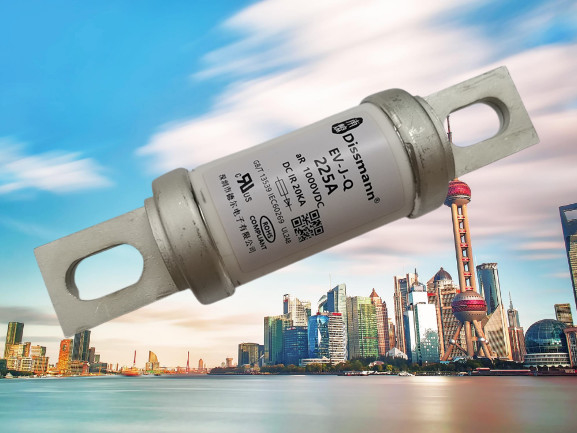

1000VDC EV battery fuse supplier in China
Specification of the EV fuse
| Material |
Body :Copper alloy tin plating Caps :Copper alloy tin plating Terminal : Copper alloy |
| Characteristic | Use in electric vehicles charging protection boards |
| Interrupting Rating | AC100KA at 1000VDC |
| Ampere Raing | 10A-800A |
| Voltage ( DC) | 1000VDC |
| Voltage(AC) | 1000VAC |
| Permissible Conditions of Use | -55℃～120℃ |
| Green Mark | RoHS |
| Safety Approvals | UL248 |
Prodcut type of EV fuse
| Model | Rated current | I²t(A²s) | Power consumption | Size Code | Install | |
| EV-J-Q-30 | 30 | 120 | 850 | 5 | VJ1 | Mounting Bolt M8 recommended torque 11N·m |
| EV-J-Q-40 | 40 | 300 | 1700 | 7.5 | ||
| EV-J-Q-50 | 50 | 450 | 2500 | 10 | ||
| EV-J-Q-60 | 60 | 620 | 3600 | 12.5 | ||
| EV-J-Q-70 | 70 | 850 | 5600 | 14 | ||
| EV-J-Q-80 | 80 | 1100 | 6600 | 15.5 | ||
| EV-J-Q-90 | 90 | 1850 | 10600 | 17 | ||
| EV-J-Q-100 | 100 | 2300 | 12000 | 18 | ||
| EV-J-Q-125 | 125 | 3400 | 21000 | 20 | ||
| EV-J-Q-150 | 150 | 4800 | 25000 | 25 | ||
| EV-J-Q-175 | 175 | 9200 | 40000 | 30 | VJ2 | Mounting Bolt M10 recommended torque 20N·m |
| EV-J-Q-200 | 200 | 15000 | 60000 | 34 | ||
| EV-J-Q-225 | 225 | 19000 | 105000 | 40 | ||
| EV-J-Q-250 | 250 | 23500 | 113000 | 43 | ||
| EV-J-Q-275 | 275 | 24800 | 128000 | 48 | ||
| EV-J-Q-300 | 300 | 26000 | 155000 | 52 | ||
| EV-J-Q-325 | 325 | 32700 | 175000 | 56 | ||
| EV-J-Q-350 | 350 | 40000 | 223000 | 60 | VJ3-1 | Mounting Bolt M12 recommended torque 28N·m |
| EV-J-Q-400 | 400 | 56000 | 290000 | 65 | ||
| EV-J-Q-450 | 450 | 78000 | 390000 | 80 | ||
| EV-J-Q-500 | 500 | 105000 | 490000 | 90 | ||
| EV-J-Q-600 | 600 | 165000 | 560000 | 105 | VJ3-2 | |
| EV-J-Q-800 | 800 | 420000 | 870000 | 175 | ||
Product characteristic
| Model | Rated current |
100%--1h Voltage drop mV |
Size code | Installation |
| EV-J-Q-225 | 225 | 194 | VJ2 |
Install Bolt M10, Recommend Torque: 20N.m |
Dimension of the 225 amp EV fuse
Product system code
