Product Details:
|
| Material: | Ceramic | Rated Current: | 5A-800A |
|---|---|---|---|
| Rated Voltage: | AC/DC500V | Breaking Capacity: | AC100KA/DC50KA |
| Type Protection: | AR | Application: | Battery,EV Charger |
| High Light: | Fiber Glass Ceramic Fuse,500VDC Fast Acting Fuse |
||

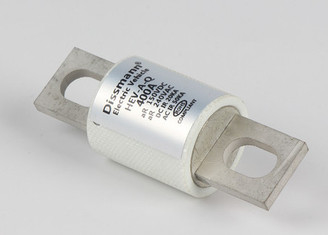

High voltage fiber glass fuse manufacture in China
Product details of the HEV fuse
This HEV series fuse is 500VDC or lower,rated current range of 5A-800A,type of protection is aR,breaking capacity is AC100KA/DC50KA,meet the requirement of UL248-20,ISO8820,JASO-D622,RoHS and EU detective.
Material of the HEV fuse
| Part | Material |
| End cap | Copper alloy |
| Fuse body | glass fibre |
| Filler | Quartz sand |

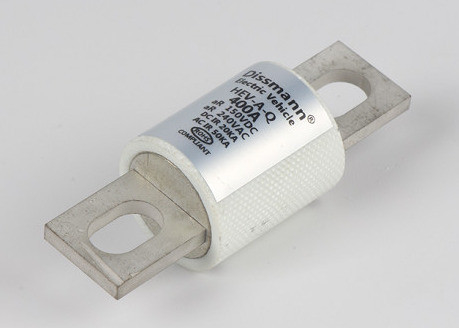

Dimension of 400 amp HEV fuse in milimeter
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1.5 |
| HZ4 | 109 | 38 | 53 | 69 | 89.5 | 10.5 | 25 | 6 | 20.7 |
Product characteristic
| Model | Rated Current(A) | 100% voltage drop (mv) | Size Code | Installation |
| HEV-H-Q-250 | 250A | 233 | HZ4 |
Install Bolt M10, Recommend Torque: 20N.m |
| HEV-H-Q-400 | 400A | 279 |
Product system code
Dissmann®Factaory Display
Dissmann® Fuse workshop display
FAQ
Question:What are your company price terms?
Answer:Our price is ex-work price, generally accept PayPal, TT payment.
