Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse

Certification
China Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions certification
China Dissmann | Global Expert Fuse for EV | HEV | Photovoltaic | Battery | Energy Storage Solutions certification
I'm Online Chat Now

Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse

Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse
Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse

Large Image :  Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: BS88-HBD series 400Amp
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs

Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse

Description
Material: Ceramic Certification: UL
Protection Type: AR Breaking Capacity: DC20KA
Rated Current: 400Amp
High Light:

400Amp DC Fuse

,

BS88 High Rupturing Capacity Fuse

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses

       The BS88 series of products are round tube type quick fuse, with small volume and high breaking capacity. It is applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, is suitable for road vehicle industry applications, and can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage and power battery, energy storage capacitor, frequency conversion controller, charger, wire and other vehicle devices and equipment.



Rated current 400 Ampere BS88 fuse have different dimensions when the rated voltage is different.

You can find as follow:

1.BS88 series HBD-400LMMP/HBD-400LMMT

  • Rated Voltage: 150VDC;
  • Rated current:400Amp;
  • Protect type:aR;
  • Breaking capacity:DC20KA;
  • Meet the requirement:UL248-13,ISO8820,JASO-D622,GB/T13539,RoHS;
  • Certification:UL, CCC

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses

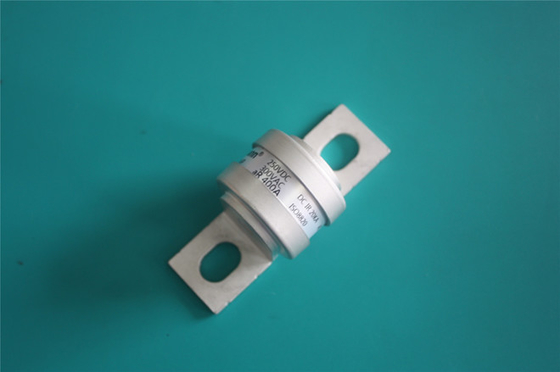

2.BS88 series HBB-400LMP/HBB-400LMT

  • Rated Voltage: 250VDC;
  • Rated current:400Amp;
  • Protect type:aR;
  • Breaking capacity:DC20KA;
  • Meet the requirement:UL248-13,ISO8820,JASO-D622,GB/T13539,RoHS;
  • Certification:UL, CCC

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses

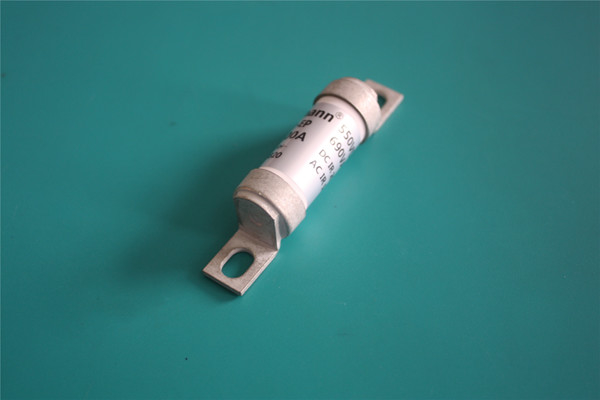

3.BS88 series HBD-400SM/HBD-400ST / HBD-400SMM/HBD-400STT

  • Rated Voltage: 550VDC;
  • Rated current:400Amp;
  • Protect type:aR;
  • Breaking capacity:DC20KA;
  • Meet the requirement:UL248-13,ISO8820,JASO-D622,GB/T13539,RoHS;
  • Certification:UL, CCC

Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse 3             Dissmann 400 Amp DC Fuse , BS88 Series British Standard High Rupturing Capacity Fuse 4

                       HBD-400SM/HBD-400ST                                        HBD-400SMM/HBD-400STT

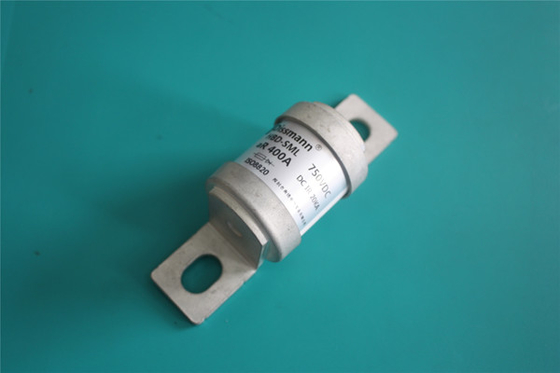

4.BS88 series HBD-400SML/HBD-400STL / HBD-400SMML/HBD-400STTL

  • Rated Voltage: 750VDC;
  • Rated current:400Amp;
  • Protect type:aR;
  • Breaking capacity:DC20KA;
  • Meet the requirement:UL248-13,ISO8820,JASO-D622,GB/T13539,RoHS;
  • Certification:UL, CCC

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses             Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses

           HBD-400SML /HBD-400STL                                       HBD-400SMML/HBD-400STTL



4.BS88 series HBD-400SMJ/HBD-400STJ / HBD-400SMMJ/HBD-400STTJ

  • Rated Voltage: 1000VDC;
  • Rated current:400Amp;
  • Protect type:aR;
  • Breaking capacity:DC20KA;
  • Meet the requirement:UL248-13,ISO8820,JASO-D622,GB/T13539,RoHS;
  • Certification:UL, CCC

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses      Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses

SMJ/STJ                                                                            SMMJ/STTJ

HBD-400SMJ/HBD-400STJ                                               HBD-400SMMJ/HBD-400STTJ



5.Application of the BS88 fuse:

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses



6.Other fuse you can choose from our factory:

Dissmann 400 Amp DC Fuse BS88 series High Rupturing Capacity Fuse British Standard Fuses
