DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp

DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp
DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp

Large Image :  DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: HEV series 01
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs

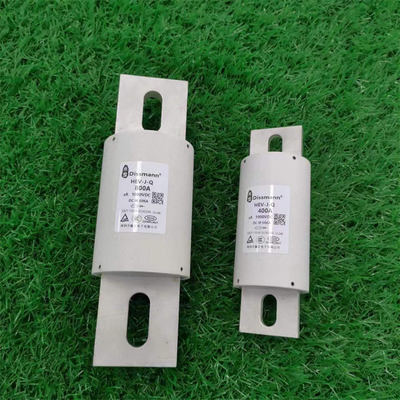

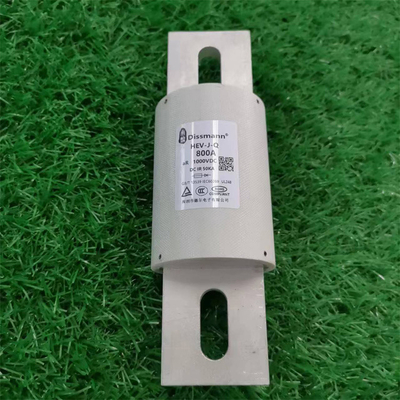

DC30ka Electric Vehicle Fuses High Breaking Capacity High Current 800amp

Description
Material: Fiber Tube Certification: UL
Protection Type: AR Breaking Capacity: DC50KA/AC100KA
Rated Voltage: AC/DC1000V Rated Current: 5A-800A
High Light:

DC30ka Electric Vehicle Fuses

,

800amp High Breaking Capacity Fuse

DC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in China

DC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in China



DC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in China


        This series of products are round tube bolt type fuses, which have the characteristics of small size, fast fusing, low I2t, high reliability, etc. It is suitable for short circuit and backup protection of frequency converter, rectifier, inverter, various power supply and other semiconductor equipment, as well as power battery, motor, capacitor, wire and other equipment and devices. This product has good vibration resistance and flame retardancy, and is suitable for rail transit, motor vehicles and other vibration environment applications.

High voltage HEV series fuse:

1.DC1000V HEV-J-Q series fuse(Rated current:10A-800A, Protection type: aR, Breaking capacity: DC30KA/AC100KA,time constant ≤15ms):

DC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in China

Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33

Products Type:

Model

Rated Current

A

I2t(A2s)

Power dissipation

W

Size code

Install

Pre-arc Total
HEV-J-Q-5 5A 20 115 1.8 HF1

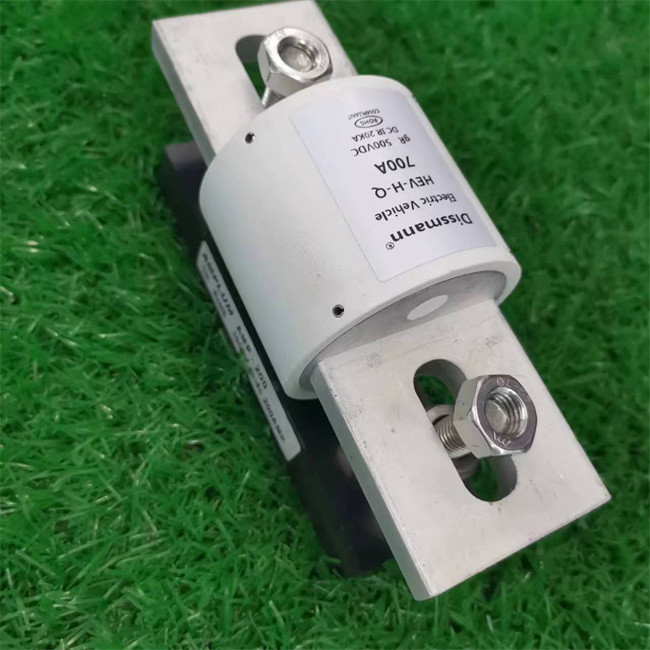

Mounting Bolt M8 recommended torque 11N·m

HEV-J-Q-10 10A 30 170 2.2
HEV-J-Q-15 15A 48 220 3.1
HEV-J-Q-20 20A 72 360 3.6
HEV-J-Q-25 25A 85 510 4.2
HEV-J-Q-30 30A 110 830 5.1
HEV-J-Q-35 35A 180 1250 6.3
HEV-J-Q-40 40A 290 1650 7.8
HEV-J-Q-45 45A 350 1900 8.5
HEV-J-Q-50 50A 440 2450 10.0
HEV-J-Q-60 60A 600 3500 12.5
HEV-J-Q-70 70A 820 5500 14
HEV-J-Q-80 80A 1050 6500 16
HEV-J-Q-90 90A 1800 10500 17 HF2
HEV-J-Q-100 100A 2300 12000 18
HEV-J-Q-125 125A 3400 21000 20
HEV-J-Q-150 150A 4900 25500 27
HEV-J-Q-175 175A 9200 40000 30 HF3







Mounting Bolt M10 recommended torque 20N·m

HEV-J-Q-200 200A 15000 60000 32
HEV-J-Q-225 225A 19000 105000 40
HEV-J-Q-250 250A 24000 113000 47
HEV-J-Q-275 275A 25000 130000 49
HEV-J-Q-300 300A 26000 160000 52
HEV-J-Q-325 325A 33000 180000 55
HEV-J-Q-350 350A 42000 230000 60 HF4
HEV-J-Q-400 400A 71000 320000 65
HEV-J-Q-450 450A 78000 300000 80
HEV-J-Q-500 500A 105000 350000 95
HEV-J-Q-600 600A 163000 530000 105 HF5

Mounting bolt M12 recommended torque 28N·m

HEV-J-Q-700 700A 320000 680000 155
HEV-J-Q-800 800A 420000 870000 185


Characteristic curve of the HEV fuse rated current:



DC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in ChinaDC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in ChinaDC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in China

Application of the DC1000V HEV fuse:



DC30ka Electric Vehicle Fuses High Breaking Capacity Fuse High Current 800amp Fuse in China
