Product Details:
|
| Material: | Ceramic | Rated Current: | 300A |
|---|---|---|---|
| Rated Voltage: | DC1000 | Type Of Protection: | AR |
| Breaking Capacity: | AC100KA、DC20KA | Meet The Requirement: | UL248-20、ISO8820、JASO-D622、EU And RoHS Detective |
| Application: | Electric Vehicle Drive Power System, Power Conversion System, Energy Storage And Power Battery | Keyword: | EV Charger Fuse |
| High Light: | High Voltage Semiconductor Fuses,EV Charging Module Semiconductor Fuses |
||

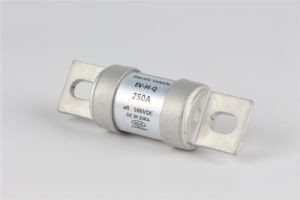

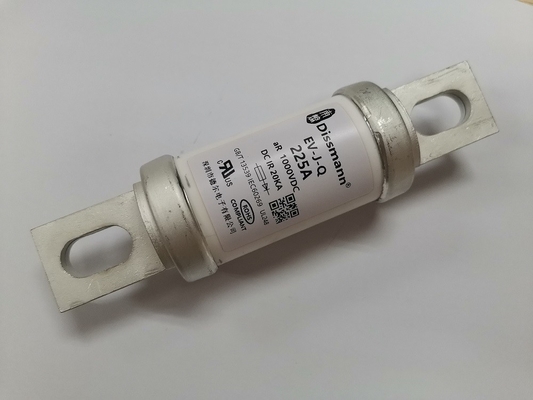

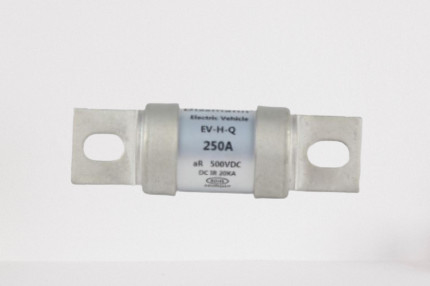

1000VDC EV semiconductor fuse designed for EV charger
Product description of 1000VDC EV fuse
This EV series fuse development with new energy vehicles,mostly customer use for EV charging station protect.We're Dissmann EV series fuse now hotsell to India and European market.The characteristic of rated current range is 10A-800A,rated voltage is 1000VDC,beaking capacity up to AC100KA,DC20KA at AC/DC1000V.EV series fuse available to bolt on,type of protection is aR.
Standard of EV fuse
The EV series fuse meet the requirement of UL248-20,ISO8820,JASO-D622,RoHS and EU detective.
Dimension of EV fuse
Size code of EV -J-Q fuse,Choose the code according to the rated current.
| Model | Size code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-J-Q | VJ1 | 116 | 30.4 | 75.5 | 97 | 9 | 25 | 4 | 13 |
| VJ2 | 139.75 | 37.3 | 75.75 | 108.75 | 11 | 25 | 6 | 15 | |
| VJ3-1 | 148 | 53.5 | 90.1 | 117.9 | 12.5 | 40 | 8 | 20 | |
| VJ3-2 | 173 | 53.5 | 114.7 | 143 | 12.5 | 40 | 6 | 20 |
VJ1:Available in mounting bolt M8 recommended torque 11N·m,rated current range of 30A-150A
VJ2:Available in mounting bolt M10 recommended torque 20N·m,rated current range of 175A-325A
VJ3-1:Available in mounting bolt M12 recommended torque 28N·m,rated current range of 350A-500A
VJ3-2:Available in mounting bolt M12 recommended torque 28N·m,rated current range of 600A-800A
Product system code
Dissmann®Factaory Display
Dissmann® Fuse workshop display
