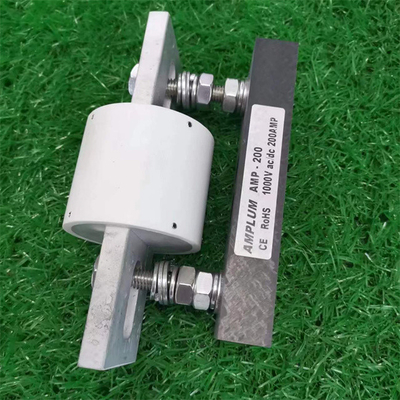

AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified

AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified
AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified

Large Image :  AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified

Product Details:
Place of Origin: Shenzhen China
Brand Name: Dissmann
Certification: UL248-20、ISO8820、JAS0-D622、RoHS
Model Number: HEV-H-Q-500
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs
Contact Now

AC100ka Electric Vehicle Fuses High Breaking Capacity TUV Certified

Description
Color: White Material: Fiber Tube
Rated Voltage: DC500V Rated Current: 500A
Protection Type: AR Breaking Capacity: AC100KA / DC50KA
High Light:

AC100ka Electric Vehicle Fuses

,

TUV Certified High Current Fuse

Dissmann®  AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

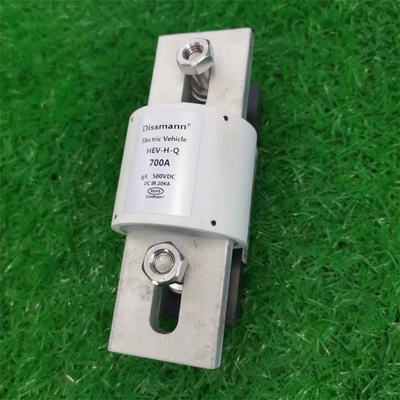

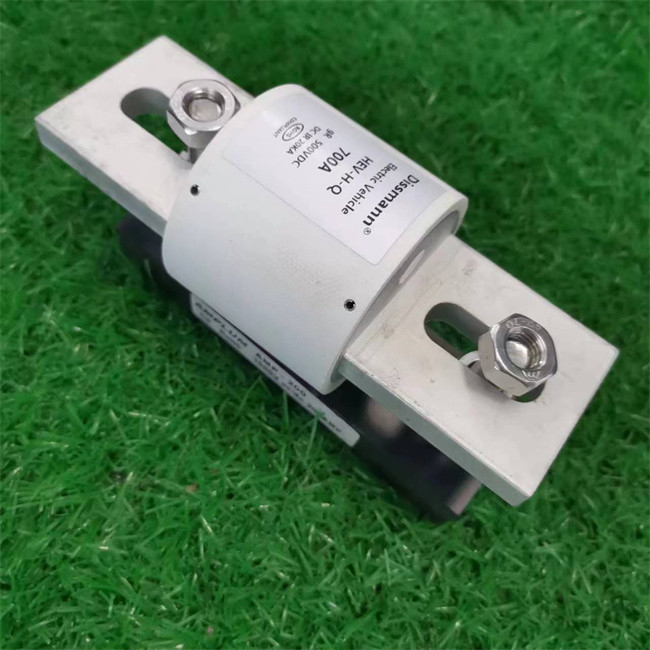

DC500V 700Amp HEV fuse for electric vehicle



AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

DC750V HEV FUSES IN DIFFERENT AMP 500A/300/100A



Basic information of the HEV fuse:

  • Type:automobile fuse (bolt type installation)
  • Dimensions and performance conforming to UL248
  • Rated voltage: AC500V(HEV-H-Q series)/AC690V(HEV-P-Q series)/AC1000V(HEV-J-Q series),
  • Rated current: 5A~800A,
  • Breaking capacity: AC100KA
  • Conform to EU and China RoHS directives
  • The executive standard is UL248-20,ISO8820,JASO-D622, TUV certification number: J 50458819 0001
  • This series of products are automobile fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to electric vehicles, energy storage system and charging modules.

Dimension of the breaking capacity AC100KA HEV series fuse:

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

1.AC500V(HEV-H-Q series)fuse size code:

Size Code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HZ1 81 22 40 55 66.5 9 15 3.3 14.75
HZ2 92.2 25 53 68 77 9 18 3.2 13.5
HZ3 92.2 33 53 68 75 9 22 5 12.5
HZ4 109 38 53 69 89.5 10.5 25 6 20.7
HZ5 110 50 53 70.5 90 10.5 38 6 20.7
HZ6 161 63 53 87 126 13.5 50 10 34
HZ7 177 76 81.5 113.5 139 16 60 10 28.4

2.AC690V(HEV-P-Q series)fuse size code:
Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HT1 73.5 14.3 48 60.5 63.5 6.5 10.3 1.6 8
HT2 110 22 69 84 95.5 9 15 3.3 14.75
HT3 129 36.5 72 88 109 10.5 25 6 20.7
HT4 129 50 72 88.6 109 10.5 38 6 20.7
HT5 180 63 72 106 145 13.5 50 10 33

3.AC1000V(HEV-J-Q series)fuse size code:
Size code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HF1 124 25 78 100 109 9 18 4 13.5
HF2 117 33 78 93 100 9 22 5 12.5
HF3 139.5 38 83.5 99.5 120 10.5 25 6 20.7
HF4 146.5 50 89.5 106 126.5 10.5 38 6 20.7
HF5 197.5 63 89.5 123.5 162.5 13.5 50 10 33


Ordinary produc type you can choose from our factory:

1.AC500V(HEV-H-Q series)fuse model:

Model

Rated Current

A

 I2t(A2s)

Power dissipation

W

Size code

Install
Pre-arc Total
HEV-H-Q-35 35A 33 145 8.5 HZ1

Mounting Bolt M8 recommended torque 11N·m
HEV-H-Q-40 40A 74 315 8
HEV-H-Q-45 45A 100 430 8
HEV-H-Q-50 50A 130 650 8.5
HEV-H-Q-60 60A 200 880 10
HEV-H-Q-70 70A 210 900 10.5 HZ2
HEV-H-Q-80 80A 300 1360 12.5
HEV-H-Q-90 90A 350 1500 15.5
HEV-H-Q-100 100A 460 1950 17.5
HEV-H-Q-125 125A 750 3430 26 HZ3
HEV-H-Q-150 150A 1000 4450 31
HEV-H-Q-175 175A 1400 6100 36
HEV-H-Q-200 200A 1800 8300 41
HEV-H-Q-225 225A 4600 23000 39 HZ4

Mounting Bolt M10 recommended torque 20N·m
HEV-H-Q-250 250A 6250 32100 41
HEV-H-Q-275 275A 7800 40000 46
HEV-H-Q-300 300A 9600 49000 52
HEV-H-Q-325 325A 13500 63000 54
HEV-H-Q-350 350A 14000 72000 59
HEV-H-Q-400 400A 18500 95500 66
HEV-H-Q-450 450A 24000 125000 75 HZ5
HEV-H-Q-500 500A 28500 147000 84
HEV-H-Q-600 600A 40500 203000 108
HEV-H-Q-700 700A 54000 295000 122 HZ6

Mounting bolt M12 recommended torque 28N·m
HEV-H-Q-800 800A 75000 406000 130
HEV-H-Q-1000 1000A 90000 430000 146 HZ7
HEV-H-Q-1200 1200A 120000 590000 180

2.AC690V(HEV-P-Q series)fuse model:

Model

Rated Current

A

 I2t(A2s)

Power dissipation

W

Size code

Install
Pre-arc Total
HEV-P-Q-5 5A 1.6 10 1.5 HT1

Mounting Bolt M6 recommended torque 4N·m
HEV-P-Q-10 10A 3.5 19 3.8
HEV-P-Q-15 15A 9.5 73 5.4
HEV-P-Q-20 20A 25.5 176 6.0
HEV-P-Q-25 25A 42 330 7.0
HEV-P-Q-30 30A 55 420 9.0
HEV-P-Q-35 35A 33 160 11.0









HT2





Mounting Bolt M8 recommended torque 11N·m
HEV-P-Q-40 40A 75 315 12.0
HEV-P-Q-45 45A 95 430 12.0
HEV-P-Q-50 50A 135 590 12.5
HEV-P-Q-60 60A 205 940 14.8
HEV-P-Q-70 70A 300 1980 17.5
HEV-P-Q-80 80A 350 2350 20.5
HEV-P-Q-90 90A 410 2630 24.0
HEV-P-Q-100 100A 530 3450 26.5
HEV-P-Q-125 125A 1700 7200 27









HT3















Mounting Bolt M10 recommended torque 20N·m
HEV-P-Q-150 150A 2750 11000 34
HEV-P-Q-175 175A 4100 16000 35
HEV-P-Q-200 200A 5400 21000 42
HEV-P-Q-225 225A 7500 30000 45
HEV-P-Q-250 250A 9700 41000 47
HEV-P-Q-275 275A 12000 58000 51
HEV-P-Q-M300 300A 16500 70000 56









HT4


HEV-P-Q-M325 325A 20000 82000 61
HEV-P-Q-M350 350A 23000 94000 63
HEV-P-Q-M400 400A 30000 123000 76
HEV-P-Q-300 300A 16500 70000 56
HEV-P-Q-325 325A 20000 82000 61
HEV-P-Q-350 350A 23000 94000 63
HEV-P-Q-400 400A 30000 123000 76
HEV-P-Q-450 450A 35000 135000 95
HEV-P-Q-500 500A 44000 165000 108
HEV-P-Q-600 600A 48000 210000 115



HT5

Mounting Bolt M12 recommended torque 28N·m
HEV-P-Q-700 700A 53000 298000 125
HEV-P-Q-800 800A 75000 445000 140


3.AC1000V(HEV-J-Q series)fuse model:

Model

Rated Current

A

 I2t(A2s)

Power dissipation

W

Size code

Install
Pre-arc Total
HEV-J-Q-5 5A 20 115 1.8 HF1

Mounting Bolt M8 recommended torque 11N·m
HEV-J-Q-10 10A 30 170 2.2
HEV-J-Q-15 15A 48 220 3.1
HEV-J-Q-20 20A 72 360 3.6
HEV-J-Q-25 25A 85 510 4.2
HEV-J-Q-30 30A 110 830 5.1
HEV-J-Q-35 35A 180 1250 6.3
HEV-J-Q-40 40A 290 1650 7.8
HEV-J-Q-45 45A 350 1900 8.5
HEV-J-Q-50 50A 440 2450 10.0
HEV-J-Q-60 60A 600 3500 12.5
HEV-J-Q-70 70A 820 5500 14
HEV-J-Q-80 80A 1050 6500 16
HEV-J-Q-90 90A 1800 10500 17 HF2
HEV-J-Q-100 100A 2300 12000 18
HEV-J-Q-125 125A 3400 21000 20
HEV-J-Q-150 150A 4900 25500 27
HEV-J-Q-175 175A 9200 40000 30 HF3







Mounting Bolt M10 recommended torque 20N·m
HEV-J-Q-200 200A 15000 60000 32
HEV-J-Q-225 225A 19000 105000 40
HEV-J-Q-250 250A 24000 113000 47
HEV-J-Q-275 275A 25000 130000 49
HEV-J-Q-300 300A 26000 160000 52
HEV-J-Q-325 325A 33000 180000 55
HEV-J-Q-350 350A 42000 230000 60 HF4
HEV-J-Q-400 400A 71000 320000 65
HEV-J-Q-450 450A 78000 300000 80
HEV-J-Q-500 500A 105000 350000 95
HEV-J-Q-600 600A 163000 530000 105 HF5

Mounting bolt M12 recommended torque 28N·m
HEV-J-Q-700 700A 320000 680000 155
HEV-J-Q-800 800A 420000 870000 185


More automotive fuses for the electric vehicle:

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

More other fuses and fuse holder you can choose from our factory:

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

The products list showed as below:

1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders

Certifications of the fuse products:

Certifications we've got:
        UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).


AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.

AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

the workshop of Dissmann fuse



AC100ka Electric Vehicle Fuses High Breaking Capacity High Current Fuse TUV Certified

the office of Dissmann fuse
