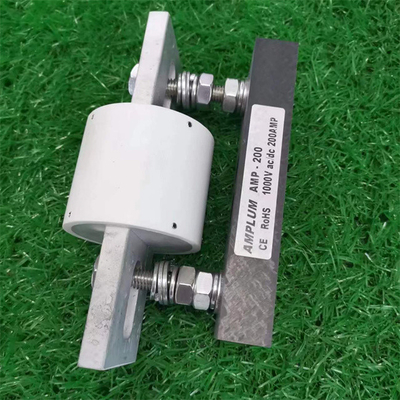

DC500V HEV Fuse And Fuse Holder High Breaking Capacity TUV Certified

DC500V HEV Fuse And Fuse Holder High Breaking Capacity TUV Certified
DC500V HEV Fuse And Fuse Holder High Breaking Capacity TUV Certified DC500V HEV Fuse And Fuse Holder High Breaking Capacity TUV Certified

Large Image :  DC500V HEV Fuse And Fuse Holder High Breaking Capacity TUV Certified

Product Details:
Place of Origin: Shenzhen China
Brand Name: Dissmann
Certification: UL248-13、ISO8820、JAS0-D622、RoHS
Model Number: HEV-P-Q-700-1
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs
Contact Now

DC500V HEV Fuse And Fuse Holder High Breaking Capacity TUV Certified

Description
Color: White Material: Fiber Tube
Rated Voltage: DC500V Rated Current: 700A
Protection Type: AR Breaking Capacity: DC50KA/ AC100KA
High Light:

Fiber Tube HEV Fuse Holder

,

DC500V High Breaking Capacity Fuse

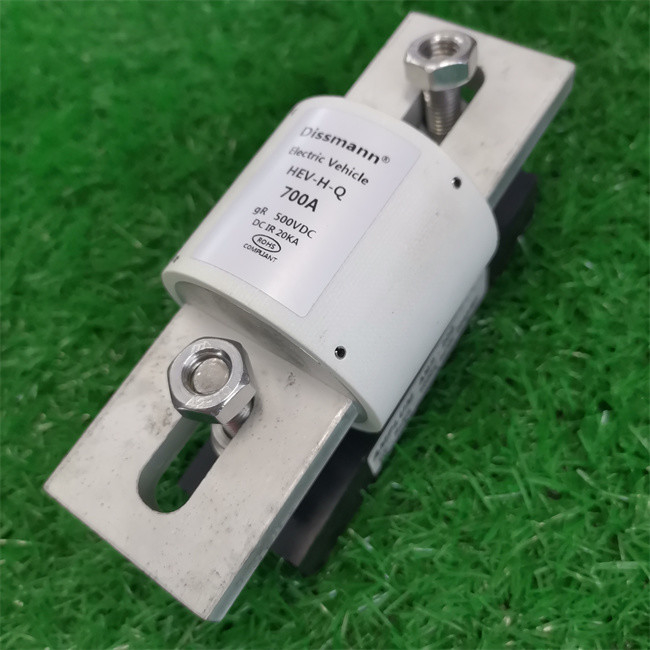

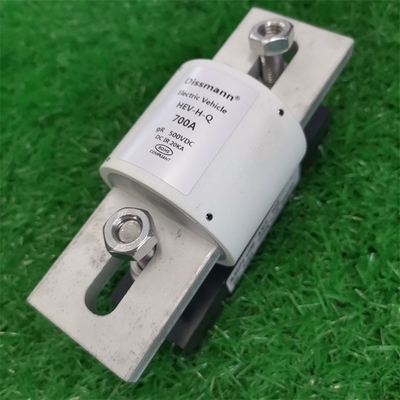

Dissmann®  DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified 700Amp

DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified Made in China

DC500V 700Amp HEV fuse for electric vehicle



DC500V HEV Fuse and Fuse Holder, High Breaking Capacity Fuse TUV Certified Made in China

HEV FUSES IN DIFFERENT AMP 500A/300/100A



Basic information of the AC/DC500V HEV fuse:

  • Type:automobile fuse (bolt type installation)
  • Dimensions and performance conforming to UL248
  • Rated voltage: AC/DC500V,
  • Rated current: 5A~800A,
  • Breaking capacity: AC100KA, DC50KA (time constant ≤15ms)
  • Conform to EU and China RoHS directives
  • The executive standard is UL248-20,ISO8820,JASO-D622, TUV certification number: J 50458819 0001
  • This series of products are automobile fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to electric vehicles, energy storage system and charging modules.
