Product Details:
|
| Material: | Ceramic | Rated Current: | 350A-500A |
|---|---|---|---|
| Rated Voltage: | DC/AC1000V | Breaking Capacity: | DC50KA |
| Standard: | UL248-13、ISO8820、JASO-D622、IEC60269 | Type Protection: | AR |
| Application: | Electric Vehicle Drive Power System, Power Conversion System | Time Constant: | ≤DC50KA |
| High Light: | TUV High Voltage DC Fuse,DC50KA Semiconductor Fuses |
||

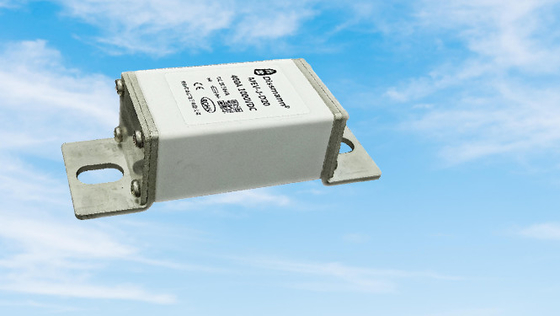

European standard MEV fuse for power battery
Product basic information
| Material |
Body :Ceramic Caps :Copper alloy Terminal : Copper alloy |
| Characteristic |
electric vehicle drive power system, power conversion system, energy storage |
| Interrupting Rating | DC50KA at 1000VDC/AC |
| Ampere Raing | 100A-315A |
| Voltage ( DC) | 1000VDC |
| Voltage(AC) | 1000VAC |
| Permissible Conditions of Use | -40℃～70℃ |
| Green Mark | RoHS |
| Safety Approvals | TUV |
Structure of the MEV fuse
The outside of the MEV fuse is composed of tube body and rivets. The inside is composed of quartz sand, melt, and water glass glue.
Dimension of the MEV fuse
| Model | Rated Current | 100%Voltage drop | Installation method |
| (A) | (mV) | ||
| MEV-J-C20-350 | 350A | 183 | Mounting Bolt M8 recommended torque 11N·m |
Application of the MEV fuse
This series of products are square tube bolt-mounted quick fuses with small size and high breaking capacity. Applicable to a wide temperature range, can withstand high-intensity mechanical vibration and shock, temperature shock and strong chemical load, suitable for road vehicle industry applications, can be used as electric vehicle drive power system, power conversion system, energy storage and power batteries, energy storage capacitors , Short circuit and backup protection of inverter controller, charger, MSD, wire and other automotive components and equipment.
Model description
TUV certificate of the MEV series fuse
Dissmann®Factaory Display
Dissmann® Fuse workshop display
FAQ:
Question:How much short -circuit current can your products protect?
Answer:Our fuse is usually a short -circuit protection of more than 5 times the rated current.
