Product Details:
|
Material: | Ceramic | Rated Current: | 5A-800A |
---|---|---|---|
Rated Voltage: | AC/DC1000V | Breaking Capacity: | AC100KA、DC30KA |
Related Standard: | UL248-20、ISO8820、JASO-D622、RoHS、TUV | Time Of Constant: | ≤15ms |
Type Of Protection: | AR | Installation: | Bolt On |
High Light: | Semiconductor Fiber Fuse,M12 Bolt Fuse |
aR protection semiconductor fuse

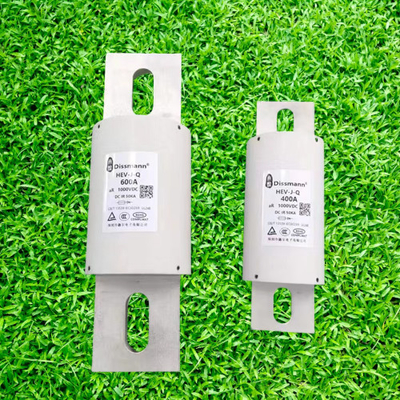

1.Product introduction of the HEV fuse
Bolt connection fast type fuse, Dimension and performance conform to UL248,GB13539,IEC60269
Rated Voltage: 1000VDC or lower,Rated Current: 600A, type of protection:aR,Breaking capacity: DC30KA(Time constant≤15ms)
Compliance with EU and ROHS directive.
Approved by CCC and TUV certificate
2.Material of the HEV fuse
Part | Material |
End cap | Copper alloy |
Fuse body | glass fibre |
Filler | Quartz sand |
4.Dimension of the 600 amp HEV fuse
Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1.5 |
HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 34 |
5.TUV certificate of the HEV fuse
6.Transportation and storage
Transportation
Rain and snow invasion and mechanical damage should be avoided during transportation.
Storage temperature
Product storage temperature: -40°C ~ 120°C. The relative humidity is not more than 70% at 40°C, the relative humidity is not more than 80% at 30°C, and the relative humidity is not more than 90% at 20°C.
Packaging storage temperature: -40°C ~ 70°C. Relative humidity is not more than 90%, no condensation.
7.Conditions of use
Normal use conditions and parameter correction
The fuses work normally under the following normal conditions without any additional correction.
When it exceeds the normal using conditions, some parameters or consultation may need to be corrected if they are within the allowable using conditions. If it is beyond the scope of allowable using conditions, you should consult our company, and carry out the work adaptability evaluation and test of the conditions.
It is recommended that the current value of long-term current shall not be greater than 80% of the rated current. For over-temperature use, please refer to the temperature evaluation curve above.
