Product Details:
|
| Material: | Ceramic | Rated Current: | 5A-800A |
|---|---|---|---|
| Rated Voltage: | AC/DC1000V | Breaking Capacity: | AC100KA、DC30KA |
| Related Standard: | UL248-20、ISO8820、JASO-D622、RoHS、TUV | Time Of Constant: | ≤15ms |
| Type Of Protection: | AR | Installation: | Bolt On |
| High Light: | Semiconductor High Breaking Capacity Fuses,Glass Fiber Semiconductor Fuses,Charging Station Semiconductor Fuses |
||

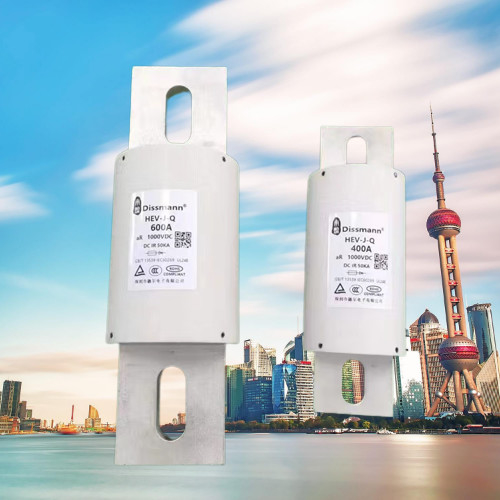

600 amp HEV glass fiber fuse supplier
1.Description of the HEV fuse
We are Dissmann HEV series fuse with rated current range of 5A~800A,rated voltage is 1000VDC/AC or lower,type of protection is aR and fast acting,the braking capacity up to AC100KA,DC30KA at 1000VDC/AC.
2.Related standard of the HEV fuse
This HEV fuse dimension and performance confirm to UL248-20,ISO8820,JASO-D622,RoHS,TUV certified.
3.Structure of the HEV fuse
The tube shape of this HEV fuse is square.The porcelain tube is made of glass fiber.The bottom touch knife is copper alloy tin plating,and the inside is composed of melting slices,solid glue and quartz sand.
4.Dimension of the 600 amp HEV fuse
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1.5 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 34 |
5.TUV certificate of the HEV fuse
6.Dissmann®Factaory Display
7.Dissmann® Fuse workshop display
Why choose our Dissmann®Fuse?
The DISSMANN R & D team was established in 2000 and began to be committed to the independent R & D design and investment in the fuse industry. In the early 20th century's electronics industry, our companies stood out in this industry with glass pipe fuse and BS1362 fuse, and became the preferred supplier of many small home appliance manufacturers. Our company is a member of the Standardization Committee of China Small Fractives and Low -voltage Fuse. It participates in the formulation and modification of series of national standards such as GB9364 and GB13539. It has 4 invention patents and 12 practical patents.
Since the battery has been used in mobile phones and laptops, we have led the fuse technology used in DC circuit protection.
Based on these experiences and achievements, we have developed and added DC fuses for protecting EV/HEV/solar photovoltaic, high -voltage, large current, and high breaks.
