Product Details:
|
| Material: | Ceramic | Rated Current: | 5A-800A |
|---|---|---|---|
| Rated Voltage: | AC/DC1000V | Breaking Capacity: | AC100KA、DC30KA |
| Related Standard: | UL248-20、ISO8820、JASO-D622、RoHS、TUV | Time Of Constant: | ≤15ms |
| Type Of Protection: | AR | Installation: | Bolt On |
| High Light: | Glass Fiber Semiconductor Fuse,600 Amp Semiconductor Fuse,TUV Approved Semiconductor Fuses |
||

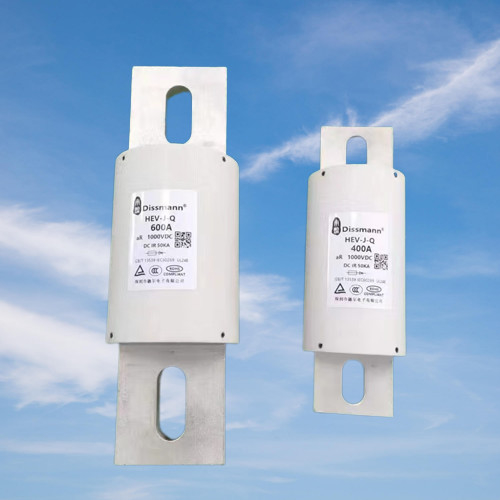

600Amp HEV fuse with high breaking capacity supply in China
1.Dissmann®Product basic information of the HEV fuse
The rated current of the HEV fuse is 600A,rated voltage is 1000VAC/DC or lower,type of protection is aR.The performance and dimension of the HEV fuse confirm to UL248,GB13539,IEC60269.
2.Structure of the HEV fuse
The tube shape of this HEV fuse is square.The porcelain tube is made of glass fiber.The bottom touch knife is copper alloy tin plating,and the inside is composed of melting slices,solid glue and quartz sand.
3.Dimension of the HEV fuse
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
4.TUV certificate of the HEV fuse
5.Dissmann®Factaory Display
6.Dissmann® Fuse workshop display
FAQ:
Question:Does your HEV series products meet the IEC standard?
Answer:Our HEV series products have obtained TUV certification, which meets IEC standards.
