Product Details:
|
| Material: | PBT | Color: | Green |
|---|---|---|---|
| Rated Voltage: | DC80V | Rated Current: | 30A |
| Characteristic: | Fast-acting | Breaking Capacity: | DC1000A |
| Meet The Requirements: | UL248/ISO8820/RoHS | Certification: | UL |
| High Light: | DC80V 5G Communication Module Fuses,30Amp 5G Communication Module Fuses,5G Automotive Blade Fuse |
||

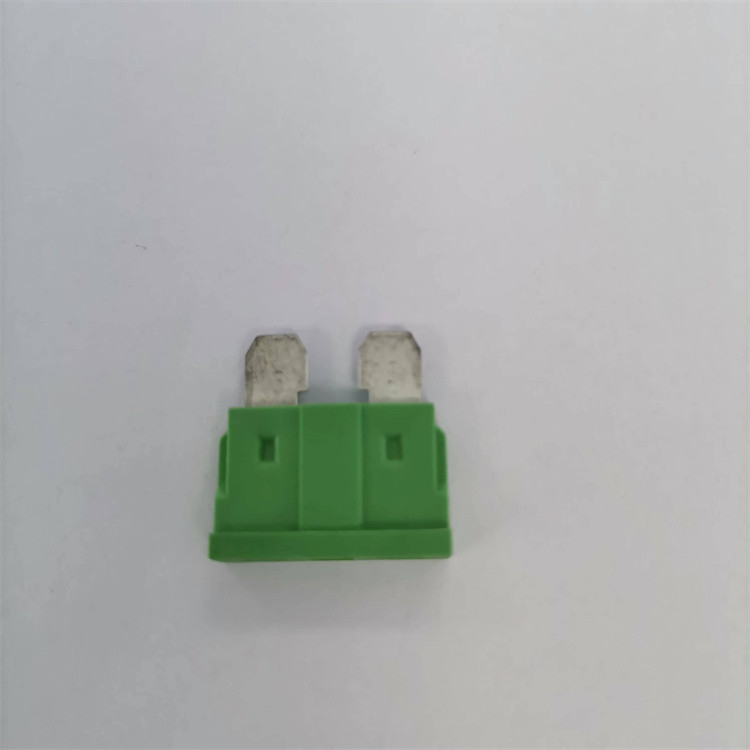

DFN-H series 5G Communication Module fuse
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
PBT |
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 1A-40A | 3600 | ∞ |
| 135% | 1A-40A | 0.500 | 300 |
| 200% | 1A-40A | 0.150 | 20 |
| 350% | 1A-40A | 0.040 | 0.500 |
| 600% | 1A-40A | 0.020 | 0.100 |
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment |

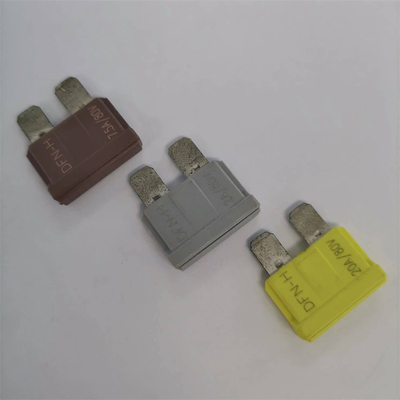

| DFN-H | DFN-H-1 | 1 | 0.4 | 174 | (Black) |
| DFN-H-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-H-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-H-4 | 4 | 13 | 135 | (Pink) | |
| DFN-H-5 | 5 | 25 | 125 | (Tan) | |
| DFN-H-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-H-10 | 10 | 110 | 110 | (Red) | |
| DFN-H-15 | 15 | 295 | 102 | (Blue) | |
| DFN-H-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-H-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-H-30 | 30 | 1460 | 86 | (Green) | |
| DFN-H-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-H-40 | 40 | 3200 | 95 | (Orange) |
Large Size Automotive Blade Fuse(rated voltage:DC80V;rated current 20A-60A)
Medium Size Automotive Blade Fuse(rated voltage:DC32V/58V/80V;rated current 1A-40A)
MINI Size Automotive Blade Fuse(rated voltage:DC32V/58V/80V;rated current 2A-30A)
The products list showed as below:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
10. Fuse blocks and holders
