Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A~800A | Rated Voltage: | AC/DC1000V |
| Breaking Capacity: | AC100KA/DC30KA | Type Of Protection: | AR |
| Application: | EV Charger,energy Storage System,battery Energy Storage | ||
| High Light: | CCC Semiconductor Fuse,Fiber Semiconductor Fuse,EV Charger Fiber Fuse |
||

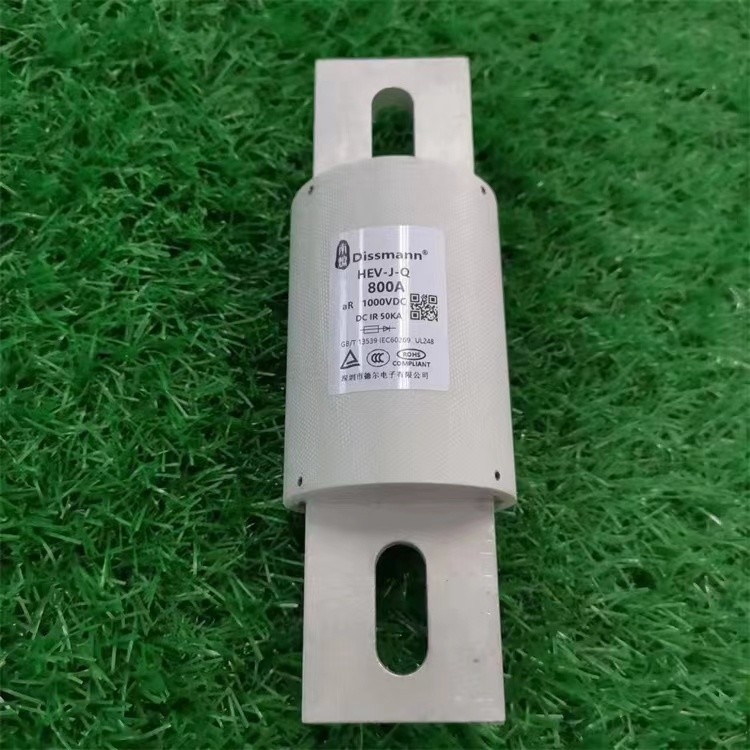

600 amp HEV Fiber tube high breaking capacity fuse made in China
Specification of the 600 amp HEV fuse
This HEV fuse products are round tube bolted connection fuses, with small size, high breaking capacity,temperature shock resistance,current surge, mechanical vibration and shock, and strong chemical load.The rating current of HEV series fuse is 5A~800A,rating voltage up to 1000VDC/AC,interrupting rating is AC100KA/DC30KA at 1000Volt.
Application
Dimension of EV fuse in milimeter
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
Feature data of the 600 amp fuse
| Model | Rated Current(A) | 100% voltage drop (mv) | Size code | Installation |
| HEV-J-Q-600 | 600 | 140.2 | HF5 |
Mounting Bolt M12, Recommend Torque: 28N.m |
Size code
HT1:5A-80A,Mouting bolt M8 recommended torque 11N·m
HT2:90A-150A,Mouting bolt M8 recommended torque 11N·m
HT3:175A-325A,Mouting bolt M10 recommended torque 20N·m
HT4:350A-500A,Mouting bolt M10 recommended torque 20N·m
HT5:600A-800A,Mouting bolt M12 recommended torque 28N·m
Standard of the HEV fuse
The HEV series fuse meets the requirements of UL248-20,ISO8820,JASO-D622,RoHS compliant,TUV,CE.
Structure of HEV fuse
The fuse is mainly composed of tube body, end cap, fuse and quartz sand.This type of fuse tube is made of fiber,the end cap is a made of copper alloy tin plating,and fuse wire is made of copper strip.
FAQ
Question:How to select the current of the fuse?
Answer:Generally, we will calculate our rated current fuse according to 1.5 times of the customer's actual operating current.
