Dissmann^®  Mini Size Low Voltage Flat Plug Fuse Ceramic Fuse with High Stability and Security in China

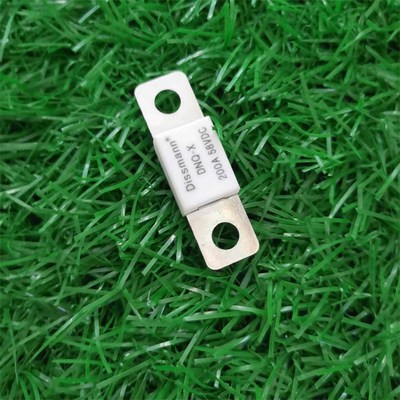

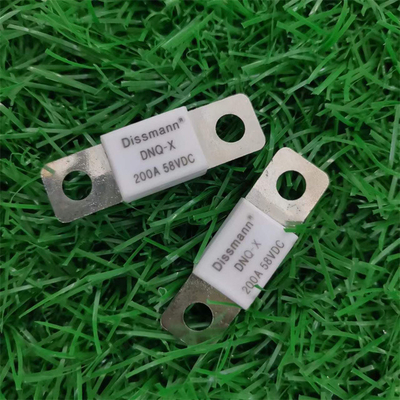

Mini Size Flat Plug fuse

Compare with the Medium size Flat Plug fuse

Compare with dimension of the three sizes of Flat plug fuse

Basic information of the fuse:

• Type:Flat plug type automobile fuse (bolt type installation)
• Dimensions and performance conforming to UL248
• Rated voltage: DC32V/58V/80V,
• Rated current: 5A~200A,
• Breaking capacity: DC1500A
• Conform to EU and China RoHS directives
• The executive standard is UL248-20
• The UL Recognized Certificate Number:E496054
• This series of products are automobile flat plug fuses, which have the characteristics of small size, low power consumption and high breaking capacity. It is applicable to low-speed electric vehicles, motors and charging modules.

Physics drawing of the dimension:

Notice:When the Rated current ≤275A,the contact foot is thick 0.8mm；

         when the Rated Current ≥300A,the contact foot is thick 1.5mm.

Ordinary produc type you can choose from our factory:

The materials of the fuse :

More other fuses and fuse holder you can choose from our factory:

Products list:
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)
2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)
3. Energy Storage Battery Fuse (MEV Series)
4. Power Fuse (HEV Series,BS88 Series,HH Series)
5. Solar PV Fuse(10*38,14*51,10*85,10*38 Hold,14*51 Hold,10*85Hold,Square Bayonet Series)
6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)
7. 5G Telecom Fuse (HR70/HRP70 Series)
8. British Standard Fuse Series (BS1362/BS646)
9. Electronic Fuse (3.6*10Series, 5*20Series, 6*30Series,Square shell)
10. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)
11. Fuse blocks and holders
12. Fuse Accessories (Parts) (Fuse wire, Copper cap, Ceramic Tube, Fibre Tube)
13. Fuse Production Equipment
14. Other Non-Standard Automatic Equipment

Certifications of the fuse products:

Certifications we've got:
        UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).

Why choose Dissmann Fuse?
1. Dissmann is BYD’s Supplier.
2. Got UL,UR,ASTA,VDE,TUV,PSB,CCC,CQC,ROHS and Patents.
3. Own Complete IATF16949,ISO9001,ISO14001.
4. We’re UL and TUV authorized 3rd-party witness Lab..
5. Core material-Fuse Wire’s manufactured by us.
6. Fuses are Automated-production. 300K BS Fuses / day.
7. Full-automation equipment produced by us.
8. Senior Engineers Team come from famous company.
9. Complete automotive grade Fuse.
10. National High-Tech Enterprises.
