Product Details:
|
| Color: | Black | Material: | Electric Wood Shell |
|---|---|---|---|
| Rated Voltage: | DC150V | Rated Current: | 10A-500A |
| Protection Type: | Time-lag | Breaking Capacity: | DC3000A |
| High Light: | Wood Shell Low Voltage Fuse,Low Voltage Fuse DC150V,Wood Shell Time Lag Fuse |
||

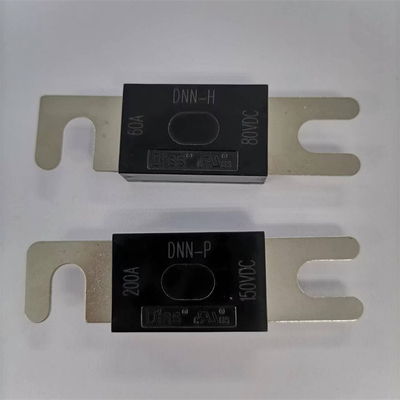

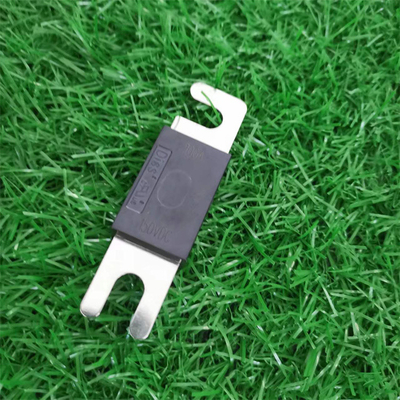

Low voltage fuse in different sizes
Physics drawing of the dimension:
Notice:When the Rated current ≤275A,the contact foot is thick 0.8mm；
when the Rated Current ≥300A,the contact foot is thick 1.5mm.
|
Model |
Product code |
Rated current A |
Voltage drop mV |
Installation requirement |
| DNN-H | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |
|
Component name |
Material |
|
Contact the foot |
copper alloy |
|
Noumenon |
Electric wood shell |
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(≤200A) | 0 | 100 |
| 200%(＞200A) | 0 | 300 |
| 250%(≤200A) | 0 | 60 |
| 250%(＞200A) | 0.8 | 120 |
| 600% | 0.02 | 10 |
Certifications we've got:
UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS and Reach certifications. And we have UL&TUV authorized third-party witness Lab., Enable us to get UL&TUV very fast (within 15days).
