Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | AC690V/DC750V |
| Type Of Protection: | AR | Interrupting Rated: | AC100KA/DC50KA@DC750V |
| Application: | Pure Electric Vehicles、hybrid Electric Vehicle | Installation: | Bolt On |
| High Light: | EV Battery Protection Fuse,DC500V DC Fuse,EV Battery DC Fuse |
||

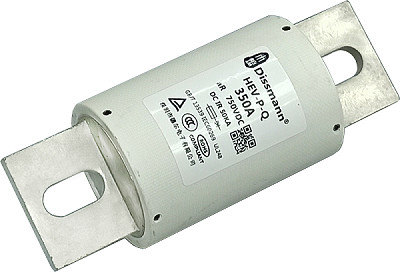

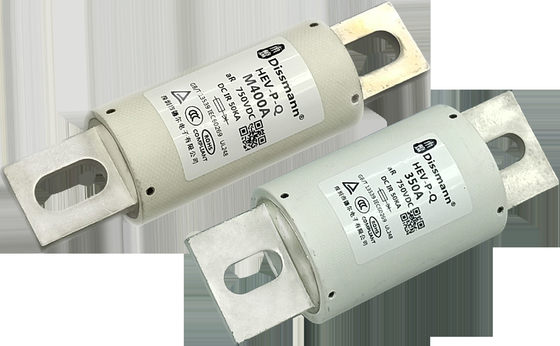

800amp semiconductor ceramic hybrid EV fuse
Specification of 800amp fuse
Voltage rating:AC690V/DC750V
Amperage rating:5A~800A
Interrupting rating:AC100KA/DC50KA@AC690V/DC750V
Type of protection:aR
Intstallation:Available in bolt
Approvals:UL248-20,ISO8820,JASO-D622,IEC60269-1,RoHS compilant.
Application of the 800amp fuse
Applicable to frequency converter, rectifier, inverter, various types of power supply and other semiconductor equipment, and power battery, electric motor, capacitor, cable and equipment or component’s short-circuit and back-up protection.This product has good vibration resistance and flame retardant performance. Suitable for vibration environment applications such as rail transit and motor vehicles.
Material of 800amp fuse
| Parts | Material |
| End Contact | Copper Alloy |
| Fuse Body | Glass Fiber |
| Filler | Quartz Sand |
Dimension of 800amp fuse
| Dimension code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HT2 | 110 | 22 | 69 | 84 | 95.5 | 9 | 15 | 3.3 | 14.75 |
| HT3 | 129 | 36.5 | 72 | 88 | 109 | 10.5 | 25 | 6 | 20.7 |
| HT4 | 129 | 50 | 72 | 88.6 | 109 | 10.5 | 38 | 6 | 20.7 |
Size code
HT1:5A-30A,Mouting bolt M6 recommended torque 4N·m
HT2:35A-100A,Mouting bolt M8 recommended torque 11N·m
HT3:125A-275A,Mouting bolt M10 recommended torque 20N·m
HT4:300A-500A,Mouting bolt M10 recommended torque 20N·m
HT5:600A-800A,Mouting bolt M12 recommended torque 28N·m
Part system number
Packages Specification:
| Code | Specification |
| HT2 |
|
| HT3 |
|
| HT4 |
|
FAQ
Question:What kind of tests do you typically perform internally on fuses?
Answer:We will test the temperature rise, fusing time and resistance of the fuse
