Product Details:
|
| Material: | PBT | Color: | Red |
|---|---|---|---|
| Rated Voltage: | DC80V | Rated Current: | 50A |
| Characteristic: | Fast-acting | Breaking Capacity: | DC1000A |
| Meet The Requirements: | UL248-13/ISO8850/RoHS | Certification: | UL |
| High Light: | 50A Dissmann Fuse,5G Communication Module Dissmann Fuse,Automotive Blade Fuse DC80V |
||

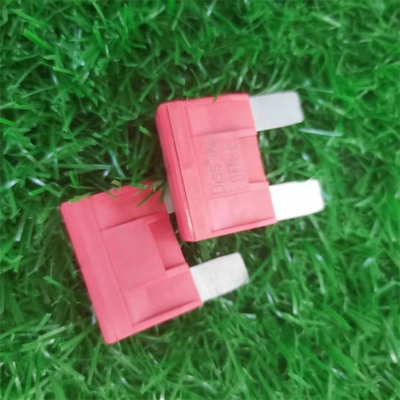

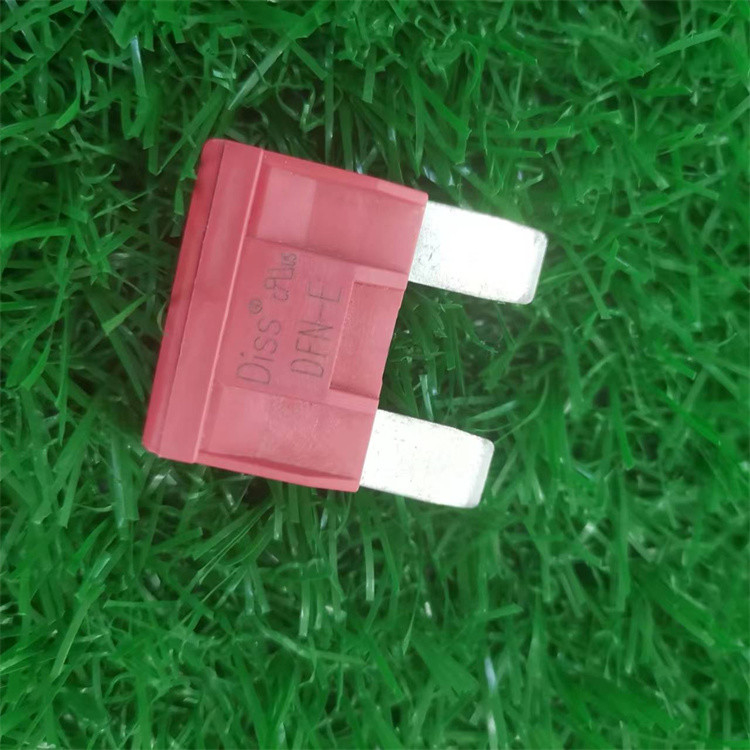

DFN-E series 5G Communication Module fuse
|
Component name |
Material |
|
Contact the foot |
Copper alloy |
|
Noumenon |
Plastic cement |
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 20A-60A | 360000 | ∞ |
| 135% | 20A-60A | - | 1800 |
| 200% | 20A-60A | 2 | 60 |
| 350% | 20A-60A | 0.2 | 7 |
| 600% | 20A-60A | 0.04 | 1 |
|
Model |
Product code |
Rated current A |
I²t (A²Sec) |
Voltage drop mV |
Pigment
|
| DFN-E | DFN-E-20 | 20 | 3500 | 100 | (Yellow) |
| DFN-E-30 | 30 | 8200 | 97 | (Green) | |
| DFN-E-40 | 40 | 14200 | 93 | (Orange) | |
| DFN-E-50 | 50 | 22500 | 90 | (red) | |
| DFN-E-60 | 60 | 23000 | 95 | (Blue) |
Large Size Automotive Blade Fuse(rated voltage:DC80V;rated current 20A-60A)
Medium Size Automotive Blade Fuse(rated voltage:DC32V/58V/80V;rated current 1A-40A)
MINI Size Automotive Blade Fuse(rated voltage:DC32V/58V/80V;rated current 2A-30A)
The products list :
1. High-Voltage Auto Fuse (EV Series, HEV Series, HEN, BS88 Series, MEV Series)2. Low-Voltage Auto Fuse (DNN Series, DFN Series,DKN Series)3. Energy Storage Battery Fuse (MEV Series)4. Power Fuse (HEV Series,BS88 Series,HH Series)5. Solar PV Fuse(10*38,14*51,10*85,10*38 Holder,14*51 Holder,10*85Holder)6. Charging Pile Fuse (HEV Series, EV Series, HDP Series)7. 5G Telecom Fuse (HR70/HRP70 Series)8. British Standard Fuse Series (BS1362/BS646)9. High-Voltage Fuse (HD501/HDP501,HD601-619/HDP601-619 Series,10*38 Series)10. Fuse blocks and holders
