Product Details:
|
| Material: | Fiber Tube | Color: | White |
|---|---|---|---|
| Rated Voltage: | AC/DC500V | Rated Current: | 5A-800A |
| Type Protection: | AR | Breaking Capacity: | AC100KA / DC50KA |
| Meet The Requirement: | UL248-20、 ISO8820、 JASO-D622、 RoHS | Application: | High Current Automotive Fuse For Semiconductor Protection |
| High Light: | Fiber Pipe Semiconductor Fuses,DC500V High Voltage Automotive Fuse,700A High Voltage Automotive Fuse |
||

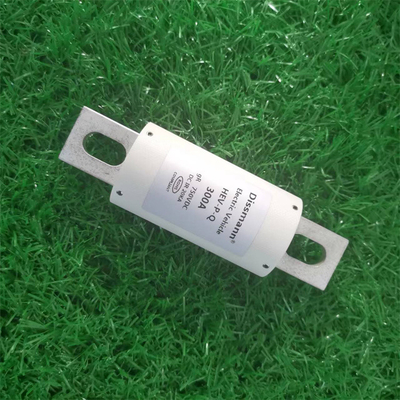

Round Tube Bolted Fuse
The body of the HEV fuse is use the glass fiber tube,has good aging resistance and corrosion resistance.
According to the diferent rated current, the size of the HEV fuse is slightly different
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HZ1 | 81 | 22 | 40 | 55 | 66.5 | 9 | 15 | 3.3 | 14.75 |
| HZ2 | 92.2 | 25 | 53 | 68 | 77 | 9 | 18 | 3.2 | 13.5 |
| HZ3 | 92.2 | 33 | 53 | 68 | 75 | 9 | 22 | 5 | 12.5 |
| HZ4 | 109 | 38 | 53 | 69 | 89.5 | 10.5 | 25 | 6 | 20.7 |
| HZ5 | 110 | 50 | 53 | 70.5 | 90 | 10.5 | 38 | 6 | 20.7 |
| HZ6 | 161 | 63 | 53 | 87 | 126 | 13.5 | 50 | 10 | 34 |
| HZ7 | 177 | 76 | 81.5 | 113.5 | 139 | 16 | 60 | 10 | 28.4 |
|
Model |
Rated Current A |
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| Pre-arc | Total | |||||
| HEV-H-Q-35 | 35A | 33 | 145 | 8.5 | HZ1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-H-Q-40 | 40A | 74 | 315 | 8 | ||
| HEV-H-Q-45 | 45A | 100 | 430 | 8 | ||
| HEV-H-Q-50 | 50A | 130 | 650 | 8.5 | ||
| HEV-H-Q-60 | 60A | 200 | 880 | 10 | ||
| HEV-H-Q-70 | 70A | 210 | 900 | 10.5 | HZ2 | |
| HEV-H-Q-80 | 80A | 300 | 1360 | 12.5 | ||
| HEV-H-Q-90 | 90A | 350 | 1500 | 15.5 | ||
| HEV-H-Q-100 | 100A | 460 | 1950 | 17.5 | ||
| HEV-H-Q-125 | 125A | 750 | 3430 | 26 | HZ3 | |
| HEV-H-Q-150 | 150A | 1000 | 4450 | 31 | ||
| HEV-H-Q-175 | 175A | 1400 | 6100 | 36 | ||
| HEV-H-Q-200 | 200A | 1800 | 8300 | 41 | ||
| HEV-H-Q-225 | 225A | 4600 | 23000 | 39 | HZ4 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-H-Q-250 | 250A | 6250 | 32100 | 41 | ||
| HEV-H-Q-275 | 275A | 7800 | 40000 | 46 | ||
| HEV-H-Q-300 | 300A | 9600 | 49000 | 52 | ||
| HEV-H-Q-325 | 325A | 13500 | 63000 | 54 | ||
| HEV-H-Q-350 | 350A | 14000 | 72000 | 59 | ||
| HEV-H-Q-400 | 400A | 18500 | 95500 | 66 | ||
| HEV-H-Q-450 | 450A | 24000 | 125000 | 75 | HZ5 | |
| HEV-H-Q-500 | 500A | 28500 | 147000 | 84 | ||
| HEV-H-Q-600 | 600A | 40500 | 203000 | 108 | ||
| HEV-H-Q-700 | 700A | 54000 | 295000 | 122 | HZ6 |
Mounting bolt M12 recommended torque 28N·m |
| HEV-H-Q-800 | 800A | 75000 | 406000 | 130 | ||
| HEV-H-Q-1000 | 1000A | 90000 | 430000 | 146 | HZ7 | |
| HEV-H-Q-1200 | 1200A | 120000 | 590000 | 180 | ||
