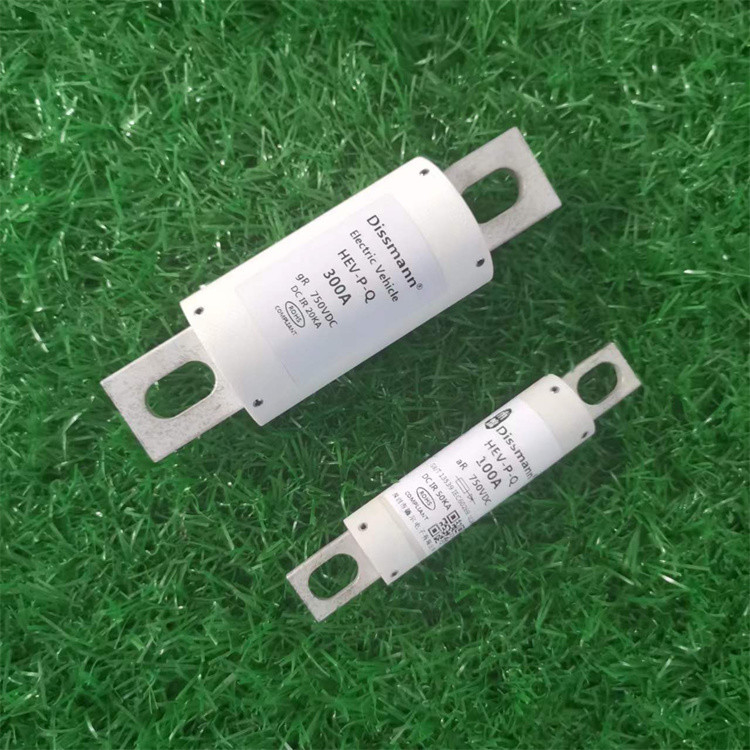

Product Details:
|
| Material: | Fiber Tube | Color: | White |
|---|---|---|---|
| Rated Voltage: | AC250V/DC150V | Rated Current: | 5A-800A |
| Type Protection: | AR | Breaking Capacity: | DC20KA |
| Meet The Requirement: | UL248-20、 ISO8820、 JASO-D622、 RoHS | Application: | High Current Automotive Fuse For Electric Vehicle |
| High Light: | DC150V Electric Vehicle Fuses,Semiconductor Protection Electric Vehicle Fuses,Semiconductor Protection Fast Acting Fuse |
||
| Size Code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HW1 | 68.2 | 25 | 29 | 44 | 53 | 9 | 18 | 3.3 | 13.5 |
| HW2 | 94 | 38 | 38 | 54 | 74.5 | 10.5 | 25 | 6 | 20.7 |
|
Model |
Rated Current A |
I2t(A2s) |
Power dissipation W |
Size code |
Install |
|
| Pre-arc | Total | |||||
| HEV-A-Q-70 | 70A | 460 | 3920 | 6.8 | HW1 |
Mounting Bolt M8 recommended torque 11N·m |
| HEV-A-Q-80 | 80A | 665 | 5850 | 7.5 | ||
| HEV-A-Q-100 | 100A | 1120 | 11100 | 8.8 | ||
| HEV-A-Q-125 | 125A | 1840 | 17600 | 11.0 | ||
| HEV-A-Q-150 | 150A | 2650 | 25400 | 12.8 | ||
| HEV-A-Q-200 | 200A | 4750 | 44000 | 17.5 | ||
| HEV-A-Q-250 | 250A | 7420 | 68500 | 22.5 | ||
| HEV-A-Q-300 | 300A | 11000 | 99000 | 26.5 | ||
| HEV-A-Q-350 | 350A | 14800 | 139000 | 30.4 | ||
| HEV-A-Q-400 | 400A | 18800 | 180000 | 34.8 | ||
| HEV-A-Q-500 | 500A | 36000 | 110000 | 34.5 | HW2 |
Mounting Bolt M10 recommended torque 20N·m |
| HEV-A-Q-600 | 600A | 43500 | 125000 | 45.6 | ||
| HEV-A-Q-700 | 700A | 68000 | 198000 | 48.5 | ||
| HEV-A-Q-800 | 800A | 86000 | 255000 | 57.0 | ||
| HEV-A-Q-1000 | 1000A | 152000 | 470000 | 59.5 | ||
