Product Details:
|
| Material: | Fiber | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | 1000VDC |
| Type Of Protection: | AR | Breaking Capacity: | DC30KA |
| Application: | Electric Vehicle Charger | Keyword: | EV Charger Fuse |
| High Light: | Fiber Tube Semiconductor Fuses,EV Charger Semiconductor Fuses,Energy Storage System Fuse DC30KA |
||

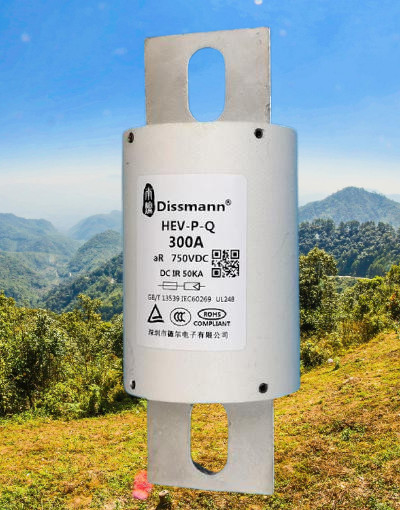

HEV Fiber tube semiconductor fuses
Application of the HEV fiber fuse
This series of products are round tube Bolt install connection fuse, with small size, low I²t, high breaking ability characteristics and other characteristics. Applicable to frequency converter, rectifier, inverter, various types of power supply and other semiconductor equipment, and power battery, electric motor, capacitor, cable and equipment or component’s short-circuit and back-up protection. This product has good vibration resistance and flame retardant performance. Suitable for vibration environment applications such as rail transit and motor vehicles.
Especially used for short-circuit protection fuses of pure electric vehicles and hybrid electric vehicles.750V DC fuse specially designed for pure electric vehicles and hybrid electric vehicle power batteries.Provide the fuse base specially customized for the harsh environment of the car.
Structure of the semiconductor fuse
Material of the HEV fuse
| Parts | Material |
| End Contact | Copper Alloy |
| Fuse Body | Glass Fiber |
| Filler | Quartz Sand |
Dimension of the semiconductor fuse,Choose the size according to the rated current.
| Dimension code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HT2 | 110 | 22 | 69 | 84 | 95.5 | 9 | 15 | 3.3 | 14.75 |
| HT3 | 129 | 36.5 | 72 | 88 | 109 | 10.5 | 25 | 6 | 20.7 |
| HT4 | 129 | 50 | 72 | 88.6 | 109 | 10.5 | 38 | 6 | 20.7 |
Package specification:
| Code | Specification |
| HT2 |
|
| HT3 |
|
| HT4 |
|
FAQ
Question 1:How to choose a fuse?
Answer:At the beginning,We will send you a customer actual application form.Generally, we need to clear your application field, opperating current and operating voltage, installation methods, certification requirements, and other parameter requirements.
