Product Details:
|
| Material: | Fiber | Color: | White |
|---|---|---|---|
| Rated Current: | 5A-800A | Rated Voltage: | 1000VDC |
| Type Of Protection: | AR | Breaking Capacity: | DC30KA |
| Application: | Electric Vehicle Charger | Keyword: | EV Charger Fuse |
| High Light: | Semiconductor High Speed Fuse,EV Charger High Speed Fuse,Semiconductor Fuses DC750V |
||

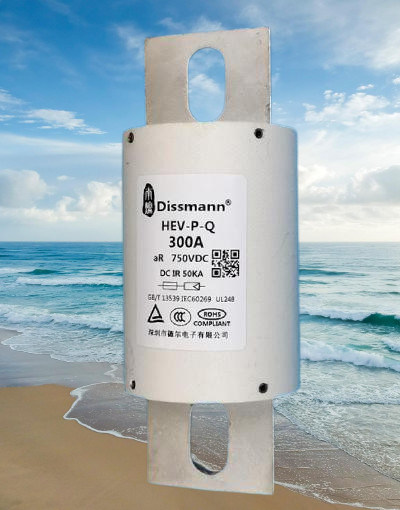

DC750V semiconductor fuses supply in China
Basic information of the DC750V fuse
Rated Voltage: DC750V or lower
Rated Current:40A/ 50A/ 60A/ 70A/ 80A/ 125A/ 150A/ 200A/ 250A/ 300A
Protect grade: aR;
Breaking capacity: DC50kA (Time Constant≤15ms )
Installation:Bolt on
Application of the DC750V fuse
This series of products are round tube Bolt install connection fuse, with small size, low I²t, high breaking ability characteristics and other characteristics. Applicable to frequency converter, rectifier, inverter, various types of power supply and other semiconductor equipment, and power battery, electric motor, capacitor, cable and equipment or component’s short-circuit and back-up protection. This product has good vibration resistance and flame retardant performance. Suitable for vibration environment applications such as rail transit and motor vehicles.
Structure of the semiconductor fuse
The main boby material is fiber tube,the fuse wire consist of copper or silver and the end cap made of Copper alloy tin plating.
Dimension of the semiconductor fuse,Choose the size according to the rated current.
| Dimension caode | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
HF1:rated current range of 5A~80A
HF2:rated current range of 90A~150A
HF3:rated current range of 175A~325A
HF4:rated current range of 350A~500A
HF5:rated current range of 600A~800A
Altitude
Normal Use Condition
Altitude is not more than 2000m.
Allowable Use Condition
2000m – 4500m.
Altitude change parameter correction: High altitude mainly cause Insulation deterioration, Deterioration of heat dissipation conditions, Air pressure change.
When altitude rise 100m, Fuse’s temperature rise 0.1-0.5k.
When altitude rise 100m, ambient temperature drop around average 0.5k.
Normal conditions, using Fuse in open environment, can neglect the altitude affect rated current, still use as standard condition. If it’s over 40°C, need to de-rating of rated current. When altitude rise 1000m, rated current de-rate 2% - 5%.
Note: In same dimension series, the maximum rated current adopts a higher de-rating ratio, lower rated current uses lower de-rating ratio. Influence of altitude on air insulation strength (breakdown strength).
Effect of Altitude on Air Dielectric Strength (Breakdown Strength)
When the altitude rises, air insulation strength decreased. Among 2000 - 4500 meters, when altitude rises 1000m, rated current de-rate 12-15%. Reference to GB/T16935.1, Correct the insulation gap accordingly.
The insulation distance between fuse terminals is generally much greater than GB/T16935.1, Table A1, and A2 Insulation gap required by standard. Except for individual fuses with smaller volume, no need to check insulation gap.
Insulation gap between fuse belt and other live structures, and to ground, the user needs to consider the impact of altitude.
FAQ
Question 1:How to choose a fuse?
Answer:At the beginning,We will send you a customer actual application form.Generally, we need to clear your application field, opperating current and operating voltage, installation methods, certification requirements, and other parameter requirements.
