Product Details:
|
| Material: | Ceramic | Color: | White |
|---|---|---|---|
| Rated Current: | 600A | Rated Voltage: | 1000VDC |
| Type Of Protection: | AR | Interrupting Capacity: | DC30KA |
| High Light: | 600A Industrial Power Fuses,1000VDC Industrial Power Fuses,EV Battery High Current Fuse |
||

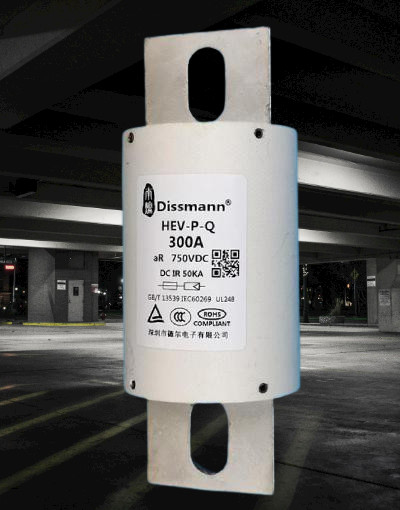

EV pack fuse manufacture in China
Product details for the EV pack fuse
Dissmann EV pack fuse suitable for rated current range of 5A-800A,rated voltage of 1000VDC,interrupting rating at AC/DC100KA,DC30KA;The type of protection is aR,available in bolt.
Application of the EV pack fuse
This series of products are round tube bolt connection fuses, with small size, fast fusing, low I2t, high reliability and other characteristics. It is suitable for short circuit and backup protection of inverter, rectifier, inverter, all kinds of power supply and other semiconductor equipment, as well as power battery, motor, capacitor, wire and other equipment and devices. This product has good vibration resistance and flame retardant properties, suitable for rail transit, motor vehicles and other vibration environment applications.
Meet the standard
Dissmann EV pack fuses performance and dimension conform to UL248-20,ISO8820,JASO-D622,RoHS and EU detective,TUV certified.
Dimension of the 600A EV pack fuse
| Size code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1.5 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 34 |
Material of the EV pack fuse
The main boby material is fiber tube,the fuse wire consist of copper or silver and the end cap made of Copper alloy tin plating.
FAQ
Question 1:How to choose a fuse?
Answer:At the beginning,We will send you a customer actual application form.Generally, we need to clear your application field, opperating current and operating voltage, installation methods, certification requirements, and other parameter requirements.
