Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 1000VDC | Rated Current: | 32A |
| Breaking Capacity: | 10KA | Standard: | UL248、IEC60127、ROHS |
| Usage: | PV Junction Box，UPS，inverter | Keyword: | Solar Fuse |
| Highlight: | IEC60127 PV Junction Box Fuse,32A PV Junction Box Fuse,IEC60127 high voltage hrc fuse |
||

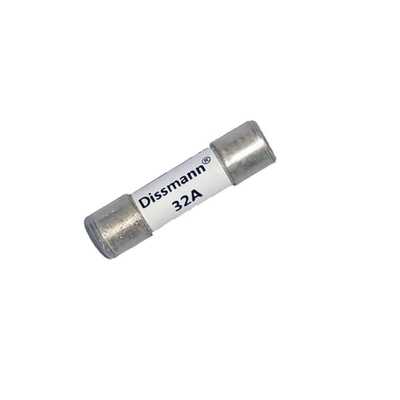

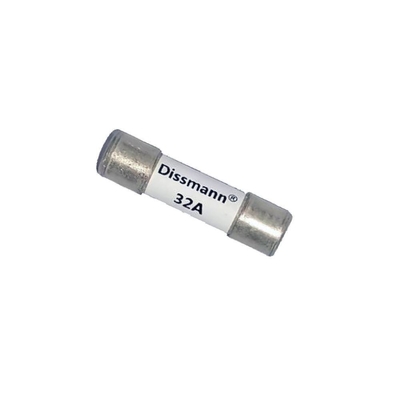

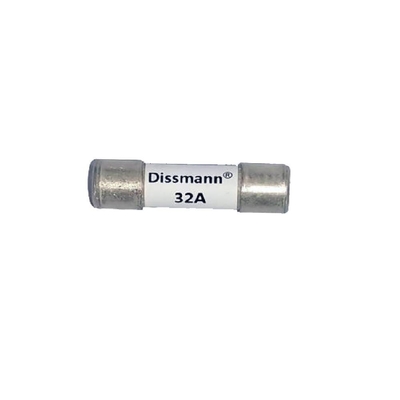

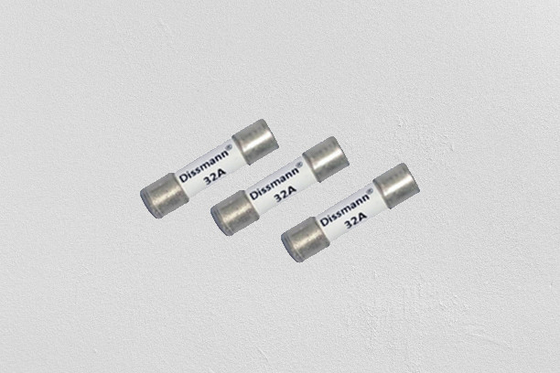

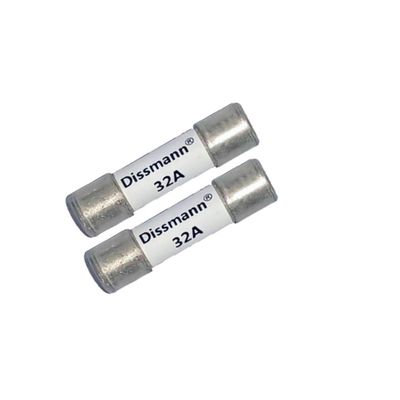

High Voltage Fuse Low Current Fuse Solar Fuse PV Junction Box Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
Rated Voltage | 80VDC-1000VDC | Characteristic | aR |
| Rated Current | 20A-100A | Breaking Capacity | 10KA |
Meet the Requirement
| UL248,IEC60127, Europe and RoHS directive | Remarks | UL,TUV |
Drawing and material sheet
| Assembly | Material quality |
| Fusant | Alloy |
| End cap | Copper alloy tin plating |
| Noumenon | Fibre pipe |
| Infilling | Quartz sand |
Product type
| Model | Rated current (A) | Rated voltage (V) | Breaking capacity |
| HDQ10PV | 25A～30A | 1000Vdc | 10KA |
| HDQ10P | 25A～30A | 750Vac/dc | |
| HDQ10D | 25A～40A | 500Vdc | |
| HDQ10MN | 25A～40A | 690Vac/dc | |
| HDQ10N | 25A～40A | 690Vac | |
| HDQ10M | 25A～40A | 690Vdc | |
| HDQ10X | 30A～100A | 500Vac | 1.5KA |
| HDQ10C | 30A～100A | 400Vdc | |
| HLQ10L1 | 30A～100A | 200Vdc | |
| HLQ10L2 | 30A～100A | 100Vdc | |
| HLQ10L | 30A～100A | 80Vdc |
