Product Details:
|
| Size Model: | DNN-C/D/EFlat Plug Fuse | Rated Voltage: | DC32V/58V/80V |
|---|---|---|---|
| Rated Current: | 10A-500A | Protection Type: | Time-lag |
| Breaking Capacity: | DC2700A | Meet The Requirements: | UL248-13,ISO8820,JASO-D622,RoHS |
| High Light: | Low Voltage Fuses UL Certified,Low Voltage Fuses 80V,ISO8820 Low Voltage Fuse |
||
Professional fuse manufacturer/More than 20 years of production experience/ Reliable quality/ Preferential price
Rated Current ≤ 275A Rated Current ≥300A

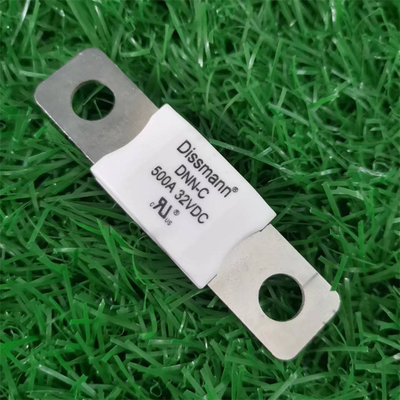

Size Model:DNN-C/D/E
Size Model:DNN-C/D/EFlat Plug Fuse
Rated Voltage:DC32V/58V/80V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
|
Rated current |
Rated voltage |
Breaking Capacity |
| 10A～500A | 32Vdc | 2700A |
| 10A～500A | 58Vdc | 2700A |
| 10A～500A | 80Vdc | 2700A |
Rated Current ≤ 275A Rated Current ≥300A
Size Model:DNQ-A/X/H
Size Model:DNQ-A/X/H Ceramic Flat Plug Fuse
Rated Voltage:DC32V/58V/80V
Rated Current:10A-200A
Protection Type:Time-lag
Breaking Capacity:DC1500A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
|
Model |
Rated current |
Rated voltage |
Rated voltage |
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
Comparison Chart of DNN and DNQ series fuses
