Product Details:
|
| Size Model: | DNN-H Flat Plug Fuse | Rated Voltage: | AC125V/DC80V |
|---|---|---|---|
| Rated Current: | 10A-500A | Protection Type: | Time-lag |
| Breaking Capacity: | DC2700A | Meet The Requirements: | UL248-13,ISO8820,JASO-D622,RoHS |
| High Light: | AC125V Low Voltage Fuses,DC80V Time Lag Fuse,JAS0-D622 Time Lag Fuse |
||
Professional fuse manufacturer/More than 20 years of production experience/ Reliable quality/ Preferential price
Rated Current ≤ 275A Rated Current ≥300A

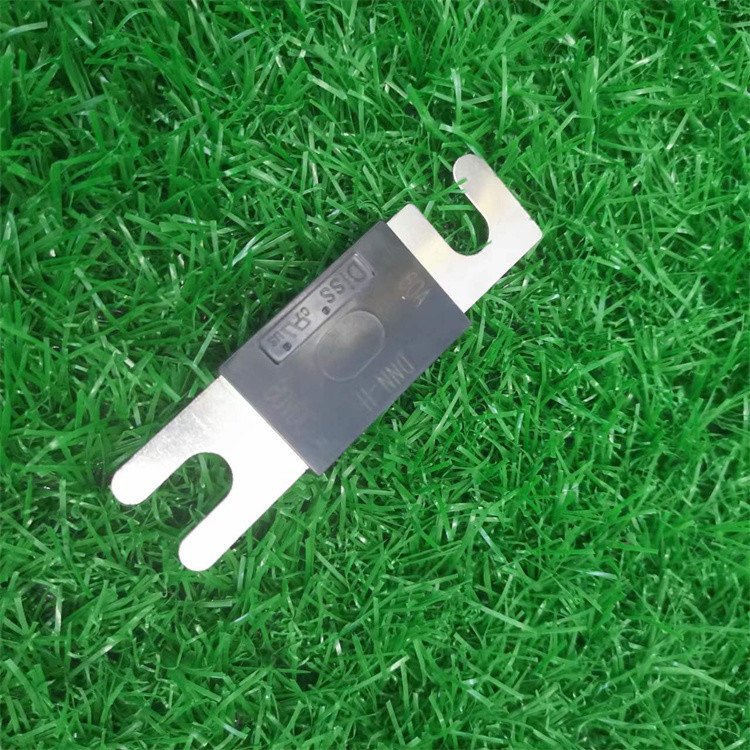

Size Model:DNN-H
Size Model:DNN-H Flat Plug Fuse
Rated Voltage:AC125V/DC80V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
|
Model |
Product code |
Rated current A |
Voltage drop mV |
Installation requirement |
| DNN-H | DNN-H-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-H-40 | 40 | 125 | ||
| DNN-H-50 | 50 | 120 | ||
| DNN-H-60 | 60 | 116 | ||
| DNN-H-80 | 80 | 112 | ||
| DNN-H-100 | 100 | 110 | ||
| DNN-H-125 | 125 | 105 | ||
| DNN-H-130 | 130 | 100 | ||
| DNN-H-150 | 150 | 96 | ||
| DNN-H-175 | 175 | 90 | ||
| DNN-H-200 | 200 | 86 | ||
| DNN-H-225 | 225 | 83 | ||
| DNN-H-250 | 250 | 80 | ||
| DNN-H-275 | 275 | 77 | ||
| DNN-H-300 | 300 | 75 | ||
| DNN-H-325 | 325 | 83 | ||
| DNN-H-350 | 350 | 81 | ||
| DNN-H-400 | 400 | 80 | ||
| DNN-H-425 | 425 | 78 | ||
| DNN-H-450 | 450 | 78 | ||
| DNN-H-500 | 500 | 76 |
Rated Current ≤ 275A Rated Current ≥300A
Size Model:DNN-P
Size Model:DNN-P Flat Plug Fuse
Rated Voltage:AC250V/DC150V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
|
Model |
Product code |
Rated current A |
Voltage drop mV |
Installation requirement |
| DNN-H | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |
