Product Details:
|
| Size Model: | DNN-A Flat Plug Fuse | Rated Voltage: | DC32V |
|---|---|---|---|
| Rated Current: | 10A-500A | Protection Type: | Time-lag |
| Breaking Capacity: | DC2700A | Meet The Requirements: | UL248-13,ISO8820,JASO-D622,RoHS |
| High Light: | Low Voltage Fuses 58V,Male Tab Low Voltage Fuses,RoHS Low Voltage Fuse |
||
Professional fuse manufacturer/More than 20 years of production experience/ Reliable quality/ Preferential price
Rated Current ≤ 275A Rated Current ≥300A
Size Model:DNN-A

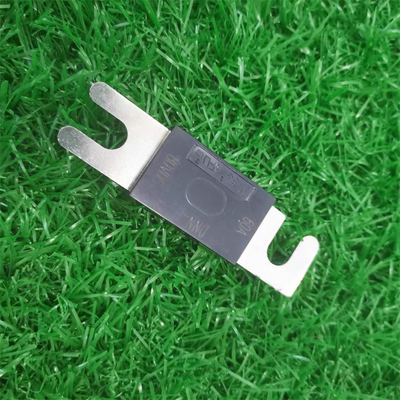

Size Model:DNN-A Flat Plug Fuse
Rated Voltage:DC32V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
|
Model |
Product code |
Rated current A |
Installation requirement |
| DNN-A | DNN-A-35 | 35 |
Install bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
Rated Current ≤ 275A Rated Current ≥300A
Size Model:DNN-X
Size Model:DNN-X Flat Plug Fuse
Rated Voltage:DC58V
Rated Current:10A-500A
Protection Type:Time-lag
Breaking Capacity:DC2700A
Meet the Requirements:UL248-13,ISO8820,JASO-D622,RoHS
Product Type:
|
Model |
Product code |
Rated current A |
Installation requirement |
| DNN-X | DNN-X-35 | 35 |
InstXll bolt M8, recommended torque 10N·m ±1 N·m |
| DNN-X-40 | 40 | ||
| DNN-X-50 | 50 | ||
| DNN-X-60 | 60 | ||
| DNN-X-80 | 80 | ||
| DNN-X-100 | 100 | ||
| DNN-X-125 | 125 | ||
| DNN-X-130 | 130 | ||
| DNN-X-150 | 150 | ||
| DNN-X-175 | 175 | ||
| DNN-X-200 | 200 | ||
| DNN-X-225 | 225 | ||
| DNN-X-250 | 250 | ||
| DNN-X-275 | 275 | ||
| DNN-X-300 | 300 | ||
| DNN-X-325 | 325 | ||
| DNN-X-350 | 350 | ||
| DNN-X-400 | 400 | ||
| DNN-X-425 | 425 | ||
| DNN-X-450 | 450 | ||
| DNN-X-500 | 500 |
