DC750V Dissmann HEV Fuse , Semiconductor Fuses JASO-D622 Approved

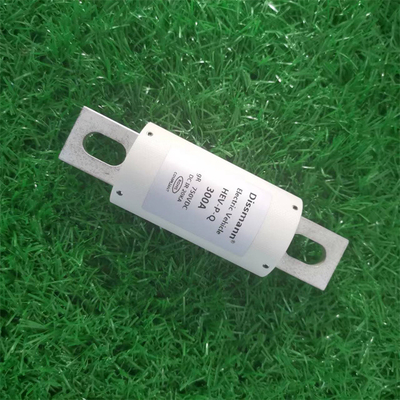

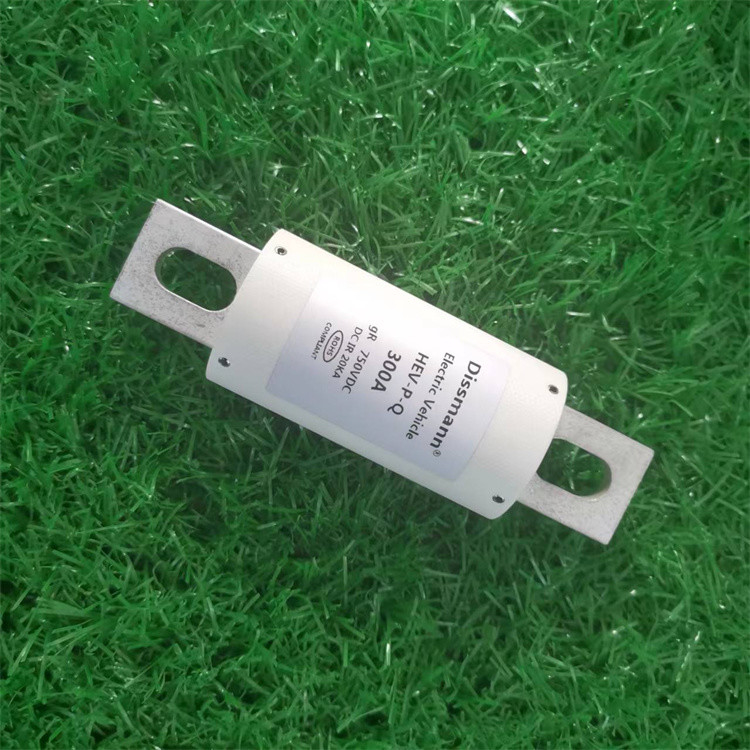

Large Image : DC750V Dissmann HEV Fuse , Semiconductor Fuses JASO-D622 Approved

Product Details:

Place of Origin:	China
Brand Name:	Dissmann
Certification:	UL
Model Number:	HEV-P-Q-300

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Carton Packing
Delivery Time:	5-8 days
Payment Terms:	L/C, T/T
Supply Ability:	1000000pcs

Contact Now

DC750V Dissmann HEV Fuse , Semiconductor Fuses JASO-D622 Approved

Description

Material:	Fiber Tube	Color:	White
Rated Voltage:	AC/DC750V	Rated Current:	5A-800A
Type Protection:	AR	Breaking Capacity:	AC100KA / DC50KA
Meet The Requirement:	UL248-20、 ISO8820、 JASO-D622、 RoHS	Application:	High Current Automotive Fuse For Electric Vehicle
High Light:	JASO-D622 Semiconductor Fuses , HEV Semiconductor Fuses , DC750V HEV Fuse

Dissmann^®^{AC690V / DC750V Semiconductor Fuse}

Dissmann HEV Fuse DC750V Semiconductor Fuses Supplied by China Factory in Shenzhen

Product introduction of the Semiconductor Fuse

1. Size of the Semiconductor Fuses:

Dissmann HEV Fuse DC750V Semiconductor Fuses Supplied by China Factory in Shenzhen

Size Code	A±2	B±1.5	C±1	D±1.5	E±1.5	F±1	G±0.5	H±0.2	J±1
HT1	73.5	14.3	48	60.5	63.5	6.5	10.3	1.6	8
HT2	110	22	69	84	95.5	9	15	3.3	14.75
HT3	129	36.5	72	88	109	10.5	25	6	20.7
HT4	129	50	72	88.6	109	10.5	38	6	20.7
HT5	180	63	72	106	145	13.5	50	10	33

Notice:HEV-P-Q series HEV DC750V Semiconductor fuse include 5 dimensions according to the rated current.

2. Model classification of the Semiconductor Fuse:

Model	Rated Current A	I²t(A²s)		Power dissipation W	Size code	Install
Model	Rated Current A	Pre-arc	Total	Power dissipation W	Size code	Install
HEV-P-Q-5	5A	1.6	10	1.5	HT1	Mounting Bolt M6 recommended torque 4N·m
HEV-P-Q-10	10A	3.5	19	3.8
HEV-P-Q-15	15A	9.5	73	5.4
HEV-P-Q-20	20A	25.5	176	6.0
HEV-P-Q-25	25A	42	330	7.0
HEV-P-Q-30	30A	55	420	9.0
HEV-P-Q-35	35A	33	160	11.0	HT2	Mounting Bolt M8 recommended torque 11N·m
HEV-P-Q-40	40A	75	315	12.0
HEV-P-Q-45	45A	95	430	12.0
HEV-P-Q-50	50A	135	590	12.5
HEV-P-Q-60	60A	205	940	14.8
HEV-P-Q-70	70A	300	1980	17.5
HEV-P-Q-80	80A	350	2350	20.5
HEV-P-Q-90	90A	410	2630	24.0
HEV-P-Q-100	100A	530	3450	26.5
HEV-P-Q-125	125A	1700	7200	27	HT3	Mounting Bolt M10 recommended torque 20N·m
HEV-P-Q-150	150A	2750	11000	34
HEV-P-Q-175	175A	4100	16000	35
HEV-P-Q-200	200A	5400	21000	42
HEV-P-Q-225	225A	7500	30000	45
HEV-P-Q-250	250A	9700	41000	47
HEV-P-Q-275	275A	12000	58000	51
HEV-P-Q-M300	300A	16500	70000	56	HT4
HEV-P-Q-M325	325A	20000	82000	61
HEV-P-Q-M350	350A	23000	94000	63
HEV-P-Q-M400	400A	30000	123000	76
HEV-P-Q-300	300A	16500	70000	56
HEV-P-Q-325	325A	20000	82000	61
HEV-P-Q-350	350A	23000	94000	63
HEV-P-Q-400	400A	30000	123000	76
HEV-P-Q-450	450A	35000	135000	95
HEV-P-Q-500	500A	44000	165000	108
HEV-P-Q-600	600A	48000	210000	115	HT5	Mounting Bolt M12 recommended torque 28N·m
HEV-P-Q-700	700A	53000	298000	125
HEV-P-Q-800	800A	75000	445000	140

3. Current Characteristic curve of the Semiconductor Fuse:

4. Semiconductor Fuses Provide By Dissmann Fuse:

Dissmann HEV Fuse DC750V Semiconductor Fuses Supplied by China Factory in Shenzhen

5. Other Fuses produced in our factory:

6. Factory Display:

Welcome you to get more information of the DC1000V HEV Automotive Fuses,We will provide you with fast and efficient services and high-quality fuse products.
