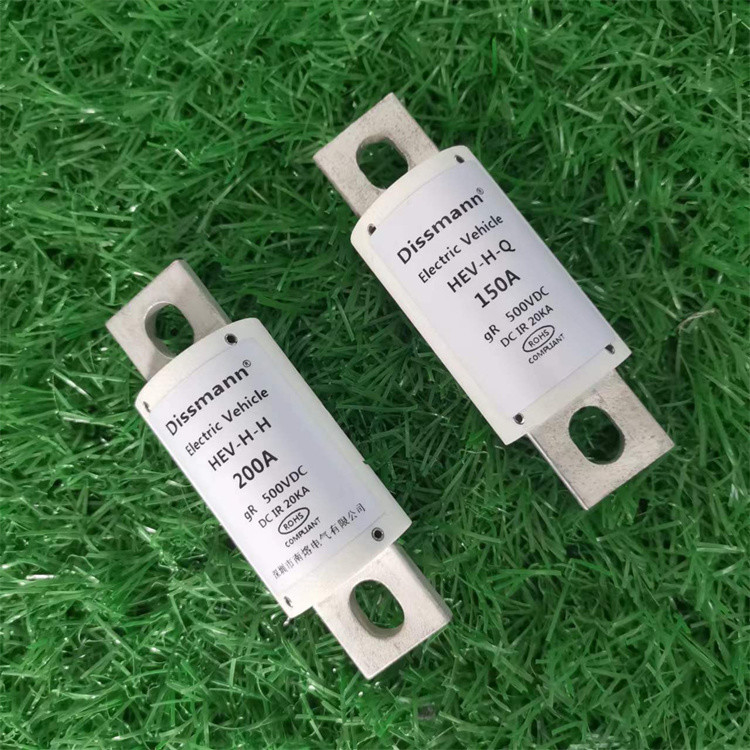

UL Certified Electric Vehicle Fuses , DC500V 200A Automotive Fuse

UL Certified Electric Vehicle Fuses , DC500V 200A Automotive Fuse
UL Certified Electric Vehicle Fuses , DC500V 200A Automotive Fuse

Large Image :  UL Certified Electric Vehicle Fuses , DC500V 200A Automotive Fuse

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: HEV-H-Q-150
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 1000000pcs

UL Certified Electric Vehicle Fuses , DC500V 200A Automotive Fuse

Description
Material: Fiber Tube Color: White
Rated Voltage: AC/DC500V Rated Current: 5A-800A
Type Protection: AR Breaking Capacity: AC100KA / DC50KA
Meet The Requirement: UL248-20 ISO8820 JASO-D622 RoHS Application: For Electric Vehicle
High Light:

UL Certified Electric Vehicle Fuses

,

DC500V Electric Vehicle Fuses

,

200A Automotive Fuse

High Breaking Capacity Automotive Fuse AC/DC500V Electric Vehicle Fuse

UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China

        Dissmann®HEV-H-Q series HEV fuses offer rated current 5A- 8A, rated voltage AC/DC500V. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622,Flame retardant characteristics conform to UL94-V0.

Product introduction of the Electric Vehicle Fuse

1.Size of the Electric Vehicle Fuses:

UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China

Size Code A±2 B±1.5 C±1 D±1.5 E±1.5 F±1 G±0.5 H±0.2 J±1
HZ1 81 22 40 55 66.5 9 15 3.3 14.75
HZ2 92.2 25 53 68 77 9 18 3.2 13.5
HZ3 92.2 33 53 68 75 9 22 5 12.5
HZ4 109 38 53 69 89.5 10.5 25 6 20.7
HZ5 110 50 53 70.5 90 10.5 38 6 20.7
HZ6 161 63 53 87 126 13.5 50 10 34
HZ7 177 76 81.5 113.5 139 16 60 10 28.4

Notice:There are 6 dimensions of the HEV-H-Q series fuse,according to the rated current,you can choose the corresponding size.

2.Model classification of the Electric Vehicle Fuse:

Model

型号

Rated Current

额定电流A

I2t(A2s)

Power dissipation

功耗W

Size code

尺寸代码

Install

安装

弧前
HEV-H-Q-35 35A 33 145 8.5 HZ1

Mounting Bolt M8 recommended torque 11N·m

安装螺栓M8推荐扭矩11N·m

HEV-H-Q-40 40A 74 315 8
HEV-H-Q-45 45A 100 430 8
HEV-H-Q-50 50A 130 650 8.5
HEV-H-Q-60 60A 200 880 10
HEV-H-Q-70 70A 210 900 10.5 HZ2
HEV-H-Q-80 80A 300 1360 12.5
HEV-H-Q-90 90A 350 1500 15.5
HEV-H-Q-100 100A 460 1950 17.5
HEV-H-Q-125 125A 750 3430 26 HZ3
HEV-H-Q-150 150A 1000 4450 31
HEV-H-Q-175 175A 1400 6100 36
HEV-H-Q-200 200A 1800 8300 41
HEV-H-Q-225 225A 4600 23000 39 HZ4

Mounting Bolt M10 recommended torque 20N·m

安装螺栓M10推荐扭矩20N·m

HEV-H-Q-250 250A 6250 32100 41
HEV-H-Q-275 275A 7800 40000 46
HEV-H-Q-300 300A 9600 49000 52
HEV-H-Q-325 325A 13500 63000 54
HEV-H-Q-350 350A 14000 72000 59
HEV-H-Q-400 400A 18500 95500 66
HEV-H-Q-450 450A 24000 125000 75 HZ5
HEV-H-Q-500 500A 28500 147000 84
HEV-H-Q-600 600A 40500 203000 108
HEV-H-Q-700 700A 54000 295000 122 HZ6

Mounting bolt M12 recommended torque 28N·m

安装螺栓M12推荐扭矩28N·m

HEV-H-Q-800 800A 75000 406000 130
HEV-H-Q-1000 1000A 90000 430000 146 HZ7
HEV-H-Q-1200 1200A 120000 590000 180



3.Current Characteristic curve of the Electric Vehicle Fuse:

UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China       UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China
UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China        UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China

4.Other Fuses you can find in our factory:

UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China


5.Factory Display:

UL Certified DC500V 200A Electric Vehicle Fuses Automotive Fuse Produced in China
      Welcome you to get more information of the Electric Vehicle Fuses,We will provide you with fast and efficient services and high-quality fuse products.
