Product Details:
|
| Material: | Fiber | Color: | White |
|---|---|---|---|
| Rated Voltage: | 1000VDC | Rated Current: | 5A-800A |
| Breaking Capacity: | AC100KA、DC30KA | Meet The Requirements: | IEC60269、ISO8820、JASO-D622、RoHS |
| High Light: | 1000VDC Automotive Fuse,800A Automotive Fuse,UL Standard Electric Vehicle Fuses |
||

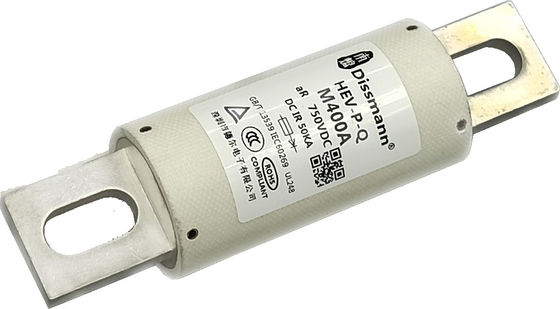

Satefy backup protection HEV fuse famous supplier in China
1.Application of HEV fuse
This HEV series of fuses are suitable for rated voltage of 1000VDC/AC,rated current of 5A-800A,and breaking capacity of AC100KA/DC30KA with small size,high breaking capacity, temperature shock resistance, current shock, mechanical vibration and shock, chemical load resistance and other characteristics.It is suitable for short-circuit and backup protection of semiconductor devices such as frequency converters, rectifiers, inverters, various power supplies, as well as power batteries, motors, capacitors, wires and other equipment and devices. This product has good anti-vibration and flame-retardant properties, and is suitable for applications in vibration environments such as rail transit and motor vehicles.

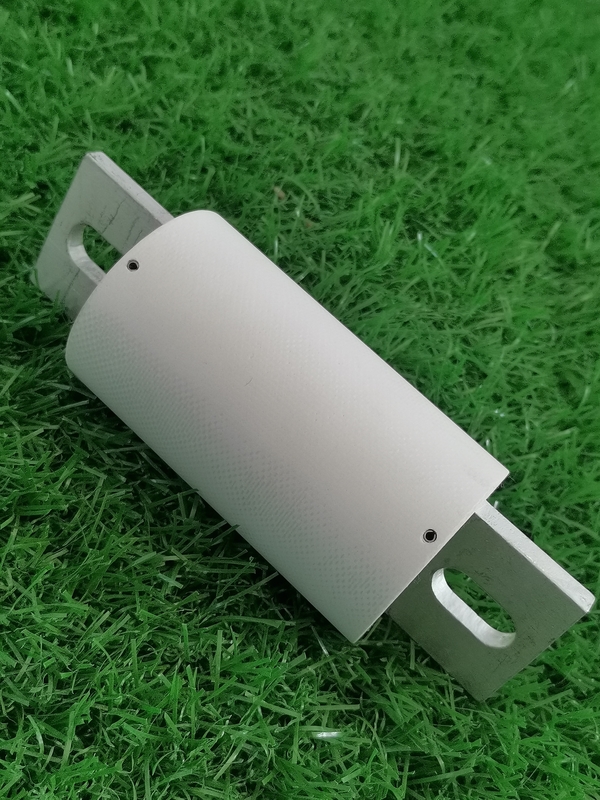

2.Structure of 1000V HEV series fuse
The melting tube of this HEV fuse is composed of high temperature resistant ceramic material,with high flame retardant performance and strong hardness.The melt is sealed in the melting tube with a varible cross-section melt made of 99.99% pure silver.The melting tube is filled with chemically treated high-purity quartz sand and specially treated chemical materials as arc extinguishing medium.The contact surface is silver plated to ensure reliable electrical performance,greetly reducing temperature rise and power consumption;Both ends of the melt are firmly connected with the contact by spot welding,which greatly enhance the safety and reliability of breaking short circuit fault current.
3.Dimension of the 1000V HEV series fuse
| Dimension code | A±2 | B±1.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| HF1 | 124 | 25 | 78 | 100 | 109 | 9 | 18 | 4 | 13.5 |
| HF2 | 117 | 33 | 78 | 93 | 100 | 9 | 22 | 5 | 12.5 |
| HF3 | 139.5 | 38 | 83.5 | 99.5 | 120 | 10.5 | 25 | 6 | 20.7 |
| HF4 | 146.5 | 50 | 89.5 | 106 | 126.5 | 10.5 | 38 | 6 | 20.7 |
| HF5 | 197.5 | 63 | 89.5 | 123.5 | 162.5 | 13.5 | 50 | 10 | 33 |
| Model | Rated Current(A) | 100% voltage drop (mv) | Size code | Installation |

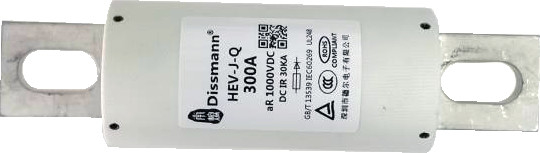

| HEV-J-Q-300 | 300 | 298 | HF3 |
Mounting Bolt M10, Recommend Torque: 21N.m |
Packaging Quantity
fuse links per plastic box.
Each long box is packed with 1 plastic box, a total of 2 fuse links, the size of the long box is 156mm long x 120mm wide x 54mm high.
Each large box contains 20 long strip boxes, a total of 40 fuse links, the size of the large box is 342mm long x 258mm wide x 285mm high.
FAQ
Q1:Are fuses also uesd in foreign-made automobiles?
A:The fuse is used by automakers around the world. Automatic fuse, mini fuse and low -key fuses are under international standards and used in vehicles around the world. Our automatic fuse, mini fuse and configuration fuse are used in vehicles made in Japan and South Korea and other parts of Asia.
