Product Details:
|
| Material: | PBT | Colour: | Black |
|---|---|---|---|
| Breaking Capacity: | DC2700A | Rated Voltage: | 32VDC |
| Rated Current: | 10A-500A | Contact The Foot: | Copper Alloy |
| High Light: | PBT Automotive Fuses,DC2700A Automotive Fuses,500A Low Voltage Fuses |
||

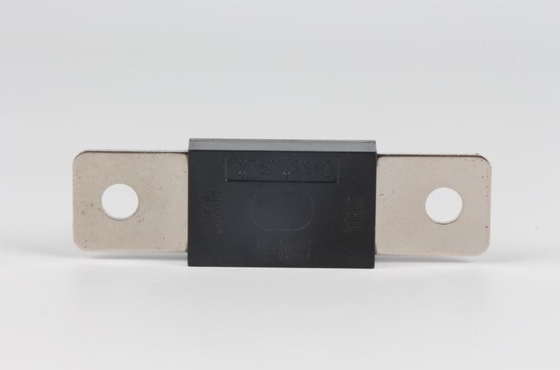

This series of products are automotive flush fuses with small size, low power consumption and high breaking capacity. Suitable for low-speed electric vehicles, electric motors, charging modules.
| Component name | Material |
| Contact the foot | copper alloy |
| Noumenon | Ceramics |
Reference drawing for ampere size less than or equal to 275A
Reference diagram of ampere size greater than or equal to 500A
| Load | Opening time | |
| 10A～500A | ||
| min | max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(≤200A) | 0 | 100 |
| 200%(＞200A) | 0 | 300 |
| 250%(≤200A) | 0 | 60 |
| 250%(＞200A) | 0.8 | 120 |
| 600% | 0.02 | 10 |
|
Model |
Product code |
Rated current A |
Installation requirement |
| DNN-A | DNN-A-35 | 35 |
Install bolt M8, recommended torque 10N·m ±1 N·m
|
| DNN-A-40 | 40 | ||
| DNN-A-50 | 50 | ||
| DNN-A-60 | 60 | ||
| DNN-A-80 | 80 | ||
| DNN-A-100 | 100 | ||
| DNN-A-125 | 125 | ||
| DNN-A-130 | 130 | ||
| DNN-A-150 | 150 | ||
| DNN-A-175 | 175 | ||
| DNN-A-200 | 200 | ||
| DNN-A-225 | 225 | ||
| DNN-A-250 | 250 | ||
| DNN-A-275 | 275 | ||
| DNN-A-300 | 300 | ||
| DNN-A-325 | 325 | ||
| DNN-A-350 | 350 | ||
| DNN-A-400 | 400 | ||
| DNN-A-425 | 425 | ||
| DNN-A-450 | 450 | ||
| DNN-A-500 | 500 |
