Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Breaking Capacity: | DC1500A | Protection Type: | Time-lag |
| Advantage: | Small Size, Low Power Consumption | Application: | Applicable To Low-speed Electric Vehicles, Motors And Charging Modules |
| High Light: | Ceramic Time Lag Fuse,DC58V Time Lag Fuse,200A Low Voltage Fuses |
||

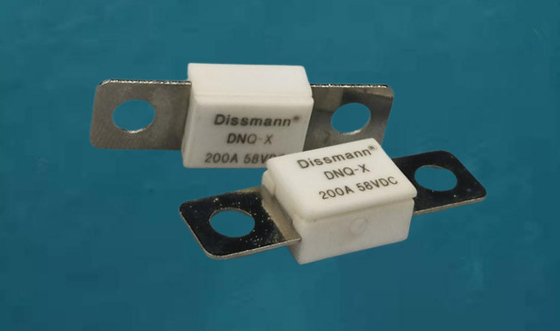

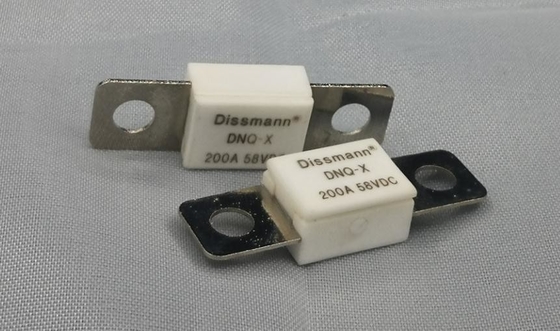

Dissmann®Time-lag Ceramic Fuse Applicable to Charging Modules of the Low-speed Electric Vehicles, Motors
DNQ-X Rated current 5A-200A,rated voltage:DC58V ,breaking capacity is DC1500A
DNQ Series Ceramic fuses an automobile flat plug fuse with small volume, low power consumption,Rated Voltage: 32VDC/58VDC/80VDC, Rated current: 5A-200A. It is applicable to charging modules of the low-speed electric vehicles, motors etc.
DNQ Series fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free, and certified UL248-20,ISO8820,JAS0-D622.
| Model | Rated current | Rated voltage | Breaking Capacity |
| A | V | ||
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
