Product Details:
|
| Material: | Ceramic Body With Metal Bolted Connection | Rated Voltage: | AC690V/DC750V |
|---|---|---|---|
| Rated Current: | 10A-500A | Type Protection: | AR |
| Breaking Capacity: | AC100KA / DC20KA | Application: | EV、PHEV、HEV、FCV、Battery Circuit For Motor Drive |
| High Light: | PHEV Ceramic Automotive Fuses,EV High Voltage Fuse,DC750V Semiconductor Fuses |
||
High Voltage Ceramic Automotive Fuses Made in China-High performance EV Fuses Meet Your Inquiry

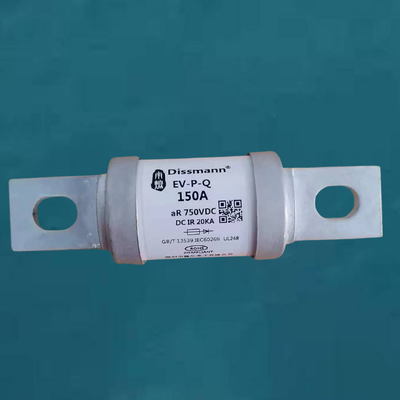

The EV-P-Q Module series are white ceramic body with metal bolted connection EV fuses, offer rated current 10A - 500A, rated voltage AC690V / DC750V.
Dissmann ceramic EV fuses are produced in the factory which located in Shenzhen China, these automotice fuses comply with RoHS compliant and halogen free,and certified UL 248-20,ISO 8820,JAS0-D622.
Dissmann ceramic EV fuse EV-P-Q Module series compact and high-performance are designed to protect a car battery, high-voltage circuit, on-board charger, and auxiliary equipment.
Product introduction
1.Shape and mounting dimensions of the ceramic EV fuses:
| Model | Size code | A±2 | B±1.5 | C±1 | D±1.5 | F±1 | G±0.5 | H±0.2 | J±1 |
| EV-P-Q | VP1 | 109 | 30.4 | 68.5 | 90 | 9 | 25 | 4 | 13 |
| VP2 | 129.5 | 37.3 | 65.5 | 98.5 | 11 | 25 | 6 | 15 | |
| VP3 | 155.5 | 53.5 | 91.2 | 125.3 | 12.5 | 40 | 6 | 20 |
2.Model classification according to ceramic EV fuses rated current:
| Model | Rated current | I²t(A²s) | Power consumption | Size Code | Install | |
| 弧前 | 熔断 | |||||
| EV-P-Q-30 | 30 | 450 | 950 | 9 | VP1 | Mounting Bolt M8 recommended torque 11N·m |
| EV-P-Q-40 | 40 | 750 | 1800 | 11 | ||
| EV-P-Q-50 | 50 | 1250 | 2800 | 13 | ||
| EV-P-Q-60 | 60 | 1800 | 4700 | 15 | ||
| EV-P-Q-70 | 70 | 2400 | 6300 | 17 | ||
| EV-P-Q-80 | 80 | 3000 | 8500 | 20 | ||
| EV-P-Q-100 | 100 | 4800 | 12000 | 22 | ||
| EV-P-Q-125 | 125 | 1300 | 23800 | 22 | VP2 | Mounting Bolt M10 recommended torque 20N·m |
| EV-P-Q-150 | 150 | 1550 | 34000 | 25 | ||
| EV-P-Q-175 | 175 | 1800 | 46500 | 30 | ||
| EV-P-Q-200 | 200 | 2450 | 55000 | 34 | ||
| EV-P-Q-250 | 250 | 4300 | 95000 | 42 | ||
| EV-P-Q-300 | 300 | 6200 | 142000 | 50 | ||
| EV-P-Q-350 | 350 | 9150 | 200000 | 60 | ||
| EV-P-Q-400 | 400 | 12300 | 260000 | 69 | ||
| EV-P-Q-350 | 350 | 59000 | 158000 | 65 | ||
| EV-P-Q-400 | 400 | 77000 | 205000 | 80 | ||
| EV-P-Q-450 | 450 | 96000 | 269000 | 95 | VP3 | Mounting Bolt M12 recommended torque 28N·m |
| EV-P-Q-500 | 500 | 118000 | 328000 | 110 | ||
| EV-P-Q-600 | 600 | 175000 | 471000 | 115 | ||
| EV-P-Q-800 | 800 | 302000 | 800000 | 140 | ||
Warm tips:You can choose the right ceramic EV fuse for your project based on the model, so you will get a quote within one business day. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
Why you choose us?
1.Focus on the production and development of fuse products for 20 years:
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
2.All fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.
Welcome you to get more information of the High Voltage Ceramic Automotive EV fuses,We will provide you with fast and efficient services and high-quality fuse products.
