Product Details:
|
Characteristic: | Fast Acting Fuse | Rated Voltage: | DC750V |
---|---|---|---|
Rated Current: | 6A-700A | Type Protection: | AR |
Breaking Capacity: | DC20KA | ||
High Light: | BS88 British Standard Fuses,DC750V British Standard Fuses,Semiconductor Protection High Speed Fuse |

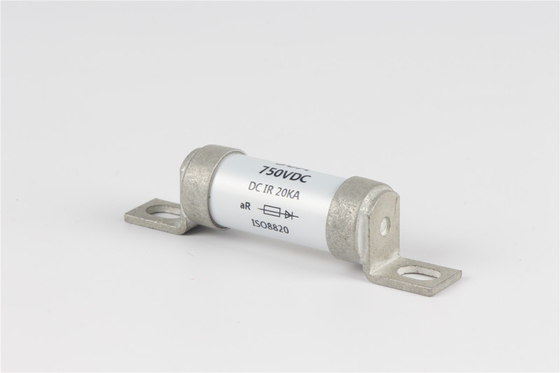

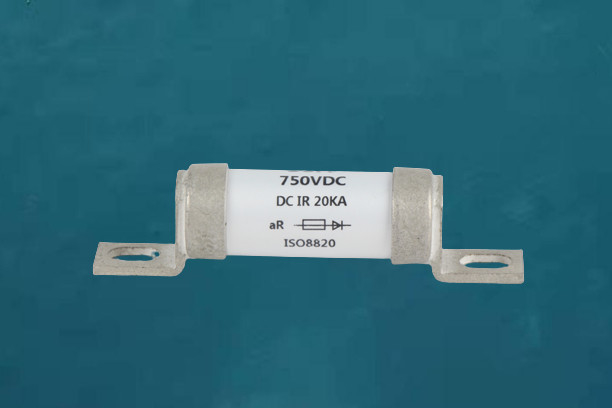

British Standard Fuses BS88-HBD series high breaking capacity fuse
Dissmann BS88-HBD series DC750V 6A-700A high speed fuses general apply to protect the semiconductor parts of the equipment controller.
BS88-HBD series Brithish standard fuses comply with RoHS compliant and halogen free,and certified UL 248-20,ISO 8820,JAS0-D622,GB/T13539.
Product introduction
1. Shape and mounting dimensions of the BS88-HBD series fuses:
2. Model classification according to BS88 fuses rated current:
Number |
Model |
Product code |
Rated current (A) |
I²t(A²Sec) |
Power consumption (W) |
|
弧前 | 熔断 | |||||
1 | CPL/CTL | HBD-6CPL/HBD-6CTL | 6 | 2.0 | 13.0 | 1.9 |
HBD-10CPL/HBD-10CTL | 10 | 7.1 | 47.2 | 2.9 | ||
HBD-12CPL/HBD-12CTL | 12 | 10.2 | 65.9 | 2.9 | ||
HBD-16CPL/HBD-16CTL | 16 | 16.3 | 107.8 | 6.8 | ||
HBD-20CPL/HBD-20CTL | 20 | 32.4 | 215.6 | 6.8 | ||
2 | EPL/ETL | HBD-16EPL/HBD-16ETL | 16 | 25.6 | 130.5 | 3.0 |
HBD-20EPL/HBD-20ETL | 20 | 40.0 | 225.0 | 3.5 | ||
HBD-25EPL/HBD-25ETL | 25 | 25.3 | 255.0 | 6.8 | ||
HBD-32EPL/HBD-32ETL | 32 | 31.7 | 346.5 | 11.0 | ||
HBD-35EPL/HBD-35ETL | 35 | 51.5 | 495.0 | 11.0 | ||
HBD-40EPL/HBD-40ETL | 40 | 104.0 | 903.0 | 8.9 | ||
HBD-45EPL/HBD-45ETL | 45 | 106.5 | 1110.0 | 10.0 | ||
HBD-50EPL/HBD-50ETL | 50 | 118.5 | 1290.0 | 11.0 | ||
HBD-56EPL/HBD-56ETL | 56 | 137 | 1530 | 13.7 | ||
HBD-63EPL/HBD-63ETL | 63 | 168 | 1978 | 15.6 | ||
HBD-80EPL/HBD-80ETL | 80 | 353 | 3890 | 18.0 | ||
HBD-100EPL/HBD-100ETL | 100 | 1200 | 4350 | 17.0 | ||
3 | HPL/HTL | HBD-32HPL/HBD-32HTL | 32 | 108 | 13000 | 10.5 |
HBD-40HPL/HBD-40HTL | 40 | 165 | 2100 | 13.0 | ||
HBD-50HPL/HBD-50HTL | 50 | 260 | 3350 | 16.0 | ||
HBD-63HPL/HBD-63HTL | 63 | 480 | 6000 | 19.0 | ||
HBD-80HPL/HBD-80HTL | 80 | 900 | 11200 | 22.8 | ||
HBD-100HPL/HBD-100HTL | 100 | 1460 | 18500 | 28.0 | ||
HBD-125HPL/HBD-125HTL | 125 | 2400 | 30200 | 34.5 | ||
HBD-160HPL/HBD-160HTL | 160 | 4300 | 54000 | 37.5 | ||
HBD-200HPL/HBD-200HTL | 200 | 8100 | 101000 | 40.0 | ||
4 | EEPL/EETL | HBD-90EEPL/HBD-90EETL | 90 | 492 | 4510 | 19.0 |
HBD-110EEPL/HBD-110EETL | 110 | 605 | 6565 | 26.5 | ||
HBD-140EEPL/HBD-140EETL | 140 | 1060 | 11880 | 34.0 | ||
HBD-160EEPL/HBD-160EETL | 160 | 1470 | 16490 | 38.2 | ||
5 | SML/STL | HBD-180SML/HBD-180STL | 180 | 1358 | 13230 | 39.0 |
HBD-200SML/HBD-200STL | 200 | 2548 | 17760 | 40.0 | ||
HBD-225SML/HBD-225STL | 225 | 3552 | 25200 | 42.8 | ||
HBD-250SML/HBD-250STL | 250 | 4990 | 3560 | 47.5 | ||
HBD-280SML/HBD-280STL | 280 | 6860 | 51000 | 48.2 | ||
HBD-315SML/HBD-315STL | 315 | 9760 | 71600 | 54.5 | ||
HBD-350SML/HBD-350STL | 350 | 14100 | 96600 | 55.6 | ||
HBD-400SML/HBD-400STL | 400 | 18500 | 125000 | 58.0 | ||
6
|
SMML/STTL
|
HBD-400SMML/HBD-400STTL | 400 | 9680 | 69600 | 83.9 |
HBD-450SMML/HBD-450STTL | 450 | 14000 | 94800 | 90.0 | ||
HBD-500SMML/HBD-500STTL | 500 | 19200 | 136500 | 99.8 | ||
HBD-550SMML/HBD-550STTL | 550 | 27600 | 195650 | 100.3 | ||
HBD-630SMML/HBD-630STTL | 630 | 40800 | 272800 | 101.9 | ||
HBD-700SMML/HBD-700STTL | 700 | 54000 | 373800 | 119.2 |
