Product Details:
|
Material: | Ceramic | Rated Current: | 1A-63A |
---|---|---|---|
Rated Voltage: | 400VAC-700VDC | Breaking Capacity: | 30KA |
Colour: | White | Installation: | With Holder |
High Light: | 14x51mm Low Voltage Fuses,Cylindrical Low Voltage Fuses,400VAC Cylinder Type Fuse |

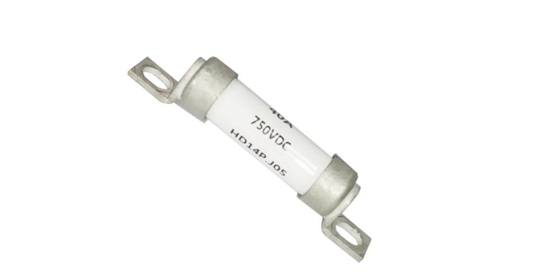

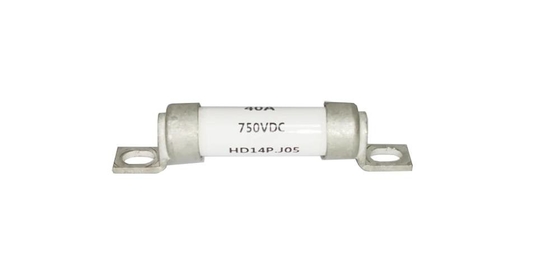

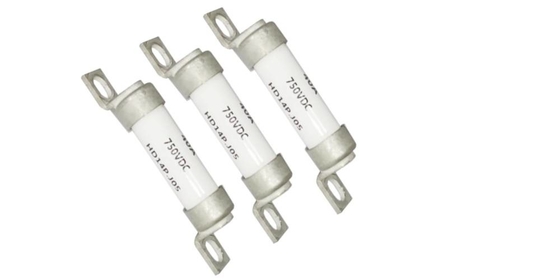

Low Current 14*51mm Cylinder Cartridge Fuses
1.Basic Informations:
Rated Current:1A-63A
Rated Voltage:400VAC-700VDC
Breaking Capacity:30KA
2.Product Type:
Model |
Rated current |
Rated voltage |
Breaking capacity |
Body material |
HD14N | 1A~63A | 700Vdc | 30KA |
Ceramic |
HD14X | 1A~63A | 690Vac | ||
HD14D | 1A~63A | 500Vdc | ||
HD14H | 1A~63A | 500Vac | ||
HD14S | 1A~63A | 400Vac | ||
HDQ14N | 1A~63A | 700Vdc | 30KA | |
HDQ14X | 1A~63A | 690Vac | ||
HDQ14D | 1A~63A | 500Vdc | ||
HDQ14H | 1A~63A | 500Vac | ||
HDQ14S | 1A~63A | 400Vac | ||
HD14PV1 | 63A | 1000VDC | 10KA | PBT |
30A | 1500VDC |
3.Product Material:
Component | Material | Quantity |
Wire | Silver copper tin alloy | 1 |
Cap | Tin plated copper alloy | 2 |
Body | Ceramic tube | 1 |
Filler | Fuse sand | Moderte |
4.Electrical Performances
4.1,Test Condition
All electrical tests are conducted at an ambient temperature of 25±3℃. The ambient temperature is not allowed to vary more than 5℃ during the test, and must be within these limits.
4.2,Current-Carring Capacity Test
When the fuse links to 100% times the rated current of the conditions tested, the circuit in 4 hour should not be disconnected, the fuse is not current melt, the tube is not broken.
5.14*51 Cylinder Fuse Product Dimension:
Product equipment:
Test equipment:
Certificate:
