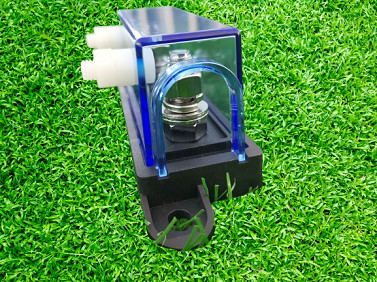

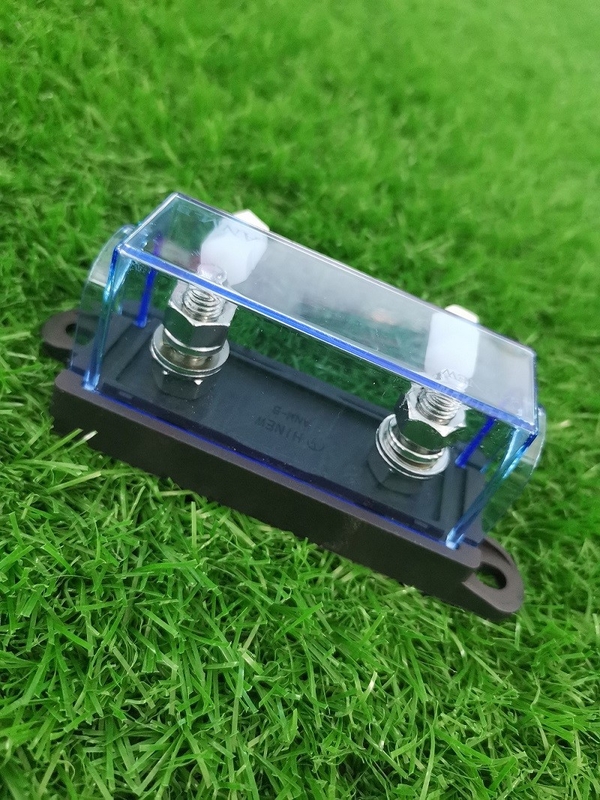

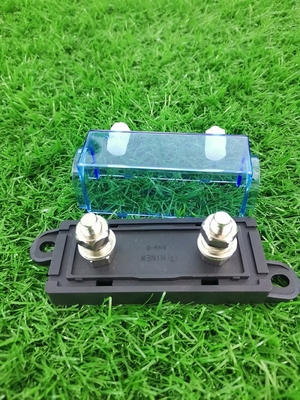

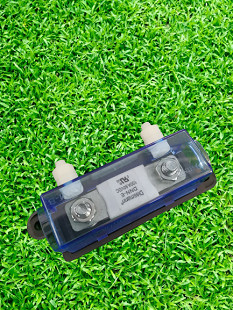

500vac Bolt On Fuse Holder Ans Blue Nylon Mage M8

Large Image : 500vac Bolt On Fuse Holder Ans Blue Nylon Mage M8

Product Details:

Place of Origin:	China
Brand Name:	Dissmann
Certification:	UL，TUV
Model Number:	ANM-B

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Carton Packing
Delivery Time:	5-8days
Payment Terms:	T/T, L/C
Supply Ability:	1,000,000pcs

Contact Now

500vac Bolt On Fuse Holder Ans Blue Nylon Mage M8

Description

Material:	Ceramic	Colour:	White
Rated Current:	500A	Rated Voltage:	100VDC
Voltage Breakdown:	Mini AC2000V	Insulation Resistance:	DC 500V 100MΩ Min
High Light:	500vac bolt on fuse holder , m8 bolt on fuse holder , nylon bolt on fuse holder

100VDC Nylon Fuse Holder

1.Name:Medium size flat type fuse base

2.Scope:

100VDC 500A and below DC current and voltage

The rated current and voltage of this product is 100VDC 500A. It is used in circuits

whose actual working value is lower than or equal to 100VDC 500A. If it is used in

a working environment higher than the rated 100VDC 500A value of this product,

it will cause serious adverse consequences. assume any responsibility.

3.Model specification:

Model:ANM-B,specification:500A 100VDC

4.Product Drawing:

4.1 Drawing(Size unit:mm)

5.Electronic Performances

5.1 Insulation resistance

DC 500V 100MΩ Min

5.2 Voltage breakdown

Min AC 2000V

6,Appearance

The appearance of the safety sheet shall not have the disadvantage of hindering it

during use;

Tag:

1500VDC Solar PV Fuses,

750volt Solar PV Fuses,

UL248 solar panel fuses
