Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Current: | 20A-100A | Rated Voltage: | 80VDC-1000VDC |
| Breaking Capacity: | DC33KA | Keyword: | Solar PV Fuse |
| High Light: | 10*38 solar pv fuses,cylindrical solar pv fuses,solar pv cartridge fuses |
||

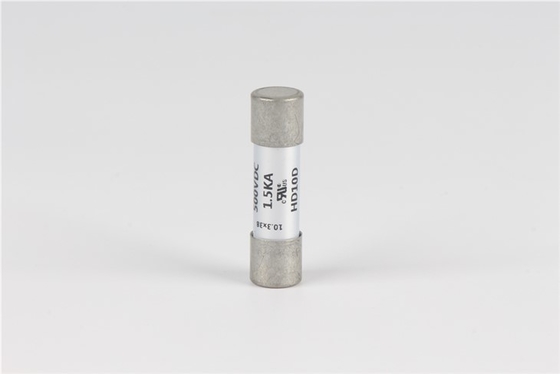

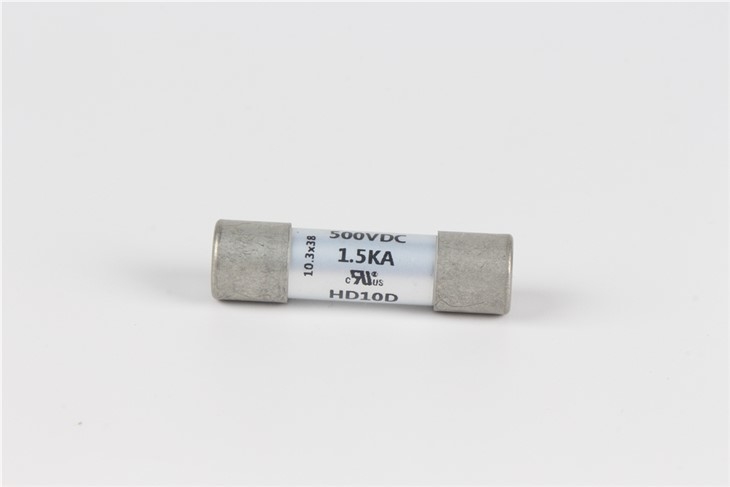

10*38mm 500VAC Solar PV Cartridge Fuse
1.Basic Information:
Rated Current:20A-100A
Rated Voltage:80VDC-1000VDC
Breaking Capacity:AC33KA
Meet the requirement:UL248,IEC60127,EU and ROSHS Detective
2.Applicable Standards:
2.1HD10X series products comply with the related standard UL248.
3.Product Material:
|
Component |
Material |
Quantity |
|
Wire |
Silver-copper alloy |
1 |
|
Cap |
Tin plated copper alloy |
2 |
|
Body |
Ceramic tube |
1 |
|
Filler |
Fuse sand |
Amount |
4.Technical Data:
|
Part Number |
Current Rating(Ampers) |
Energy Integrals I2T(A2S) |
| HD10X-1A | 1 | 0.371 |
| HD10X-1.5A | 1.5 | 0.835 |
| HD10X-2A | 2 | 4.09 |
| HD10X-3A | 3 | 10 |
| HD10X-5A | 5 | 38.4 |
| HD10X-6.3A | 6.3 | 71.4 |
5.Product Dimension:
6.Electrical Performances
6.1,Test Condition
All electrical tests are conducted at an ambient temperature of 25±3℃. The ambient temperature is not allowed to vary more than 5℃ during the test, and must be within these limits.
6.2,Current-Rating Capacity Test
When the fuse links to 100% times the rated current of the conditions tested, the circuit in 4 hour should not be disconnected, the fuse is not current melt, the tube is not broken.
6.3,Pre-Arcing Time-Current Characterisitc
When the current in the following table is passing the fuse, its opening time must be in accordance with the requirements in the following table, that is, the pre-arcing time. Moreover, neither damage of the fuse-tube nor shattering of the cap shall occur.
| 熔断电流/ % of Rated Current | 熔断时间/ Open Time |
| 200% | ＜2min |

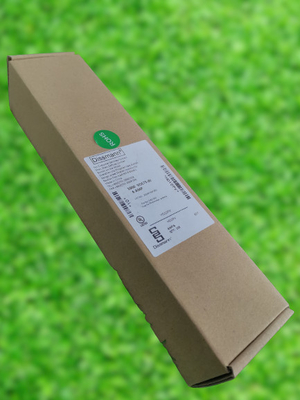

7,Packing Details
7.1,Packing Quantity
10pcs per inner small box,10pcs small box per inner big box.
B:10 inner big box per.
C:Each small box with 1 small packaging label,Each box with 1 packaging label,Each box with 1 Outgoing inspection report.
Note: this package is for reference only, and the actual packing is the criterion.
7.2,Packing shall be so carried out that the products will not absorb moisture or be damaged during transportation or storage.
