Product Details:
|
| Meterial: | Nylon | Color: | Blue |
|---|---|---|---|
| Rated Current: | 500A | Rated Voltage: | 100VDC |
| Voltage Breakdown: | Min AC2000V | Insulation Resistance: | DC 500V 100MΩ Min |
| High Light: | blue terminal fuse block,medium size fuse block |
||

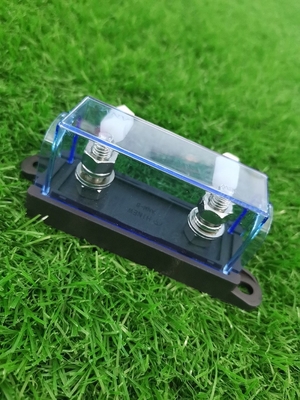

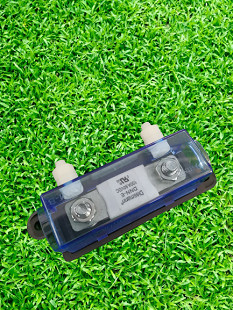

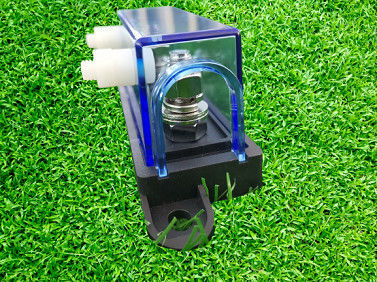

ANM Blue Terminal Fuse Base Match With Medium Size Flat Type Fuse
1.Product Information:
Rated Current:500A
Rated Voltage:100VDC
Voltage breakdown:Min AC 2000V
Insulation resistance:DC 500V 100MΩ Min
2.Product Application:
It is used in circuits whose actual working value is lower than or equal to 100VDC 500A. If it is used in a working environment higher than the rated 100VDC 500A value of this product, it will cause serious adverse consequences. assume any responsibility.
3.Electronic Performances:
3.1 Insulation resistance
DC 500V 100MΩ Min
3.2 Voltage breakdown
Min AC 2000V
4.Manufacturing Meterial:
| Part name | Material |
| screw bolt | Class 8.8, nickel or gold plated |
| Main body | nylon, PC |
5.Product Drawing:
Product equipment:
Test equipment:
Certificate:
