Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 1500VDC | Rated Current: | 1A-30A |
| Breaking Capacity: | 10kA | Operating Class: | GPV |
| High Light: | GPV Semiconductor Fuses,1500VDC Semiconductor Fuses,10 mm fuse |
||

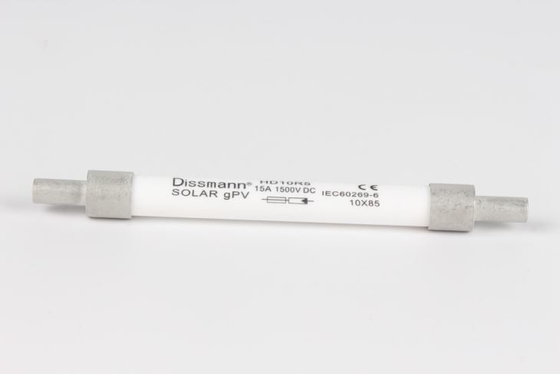

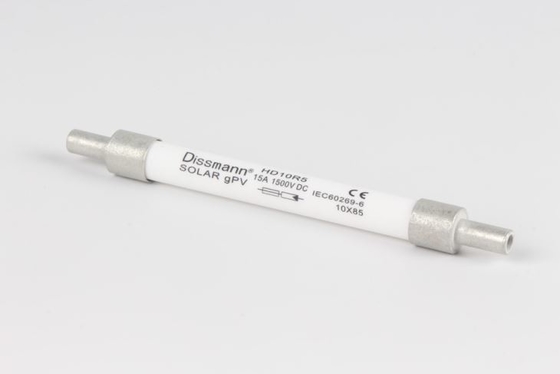

GPV Operating Semiconductor Fuses 10 Mm X 85 Mm 1500VDC Rated Voltage
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Semiconductor Fuses 10 Mm X 85 Mm
Many kinds of Semiconductor Fuses 10 Mm X 85 Mm
Current rating: 15A
Voltage rating:1500VDC
Breaking capacity:10kA
Product Presentation:
|
Rated Voltage |
DC1500V |
Characteristic
|
gPV/aR |
| Rated Current | 1A-40A |
Breaking Capacity
|
DC10KA |
|
Meet the Requirement
|
UL248-13,IEC60269.6, EU and Rosh Directive |
Remarks |
UL,TUV |
Overall dimensions of the product(mm)
Performance criteria of Semiconductor Fuse
| Blowing current | Fusing time |
| 200% | ＜4min |
| 135% | ＜1h |
| 113% | ＞1h |
| 100% | ＞4h |
Current characteristic curve
Product type of Semiconductor Fuse
| Model |
Rated current |
Rated voltage |
Breaking capacity |

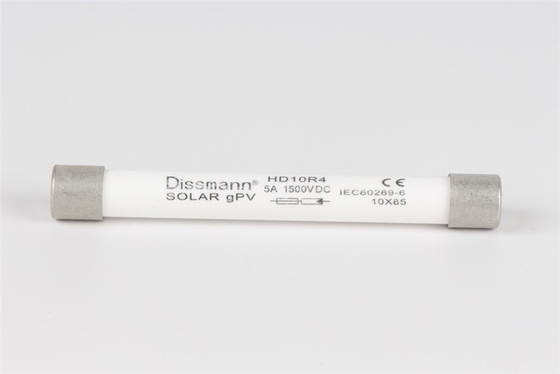

| HD10R4/HD10W4 | 1A～20A | 1500Vdc | 10KA |
| HD10R4.J03/HD10W4.J03 | 1A～40A | 1500Vdc | 10KA |
| HD10R5 | 1A～20A | 1500Vdc | 10KA |
| HD14R6 | 20A～40A | 1500Vdc | 10KA |
| HDPV5 | 40A | 1500Vdc | 10KA |
