Product Details:
|
| Material: | Ceramic | Coulor: | White |
|---|---|---|---|
| Rated Voltage: | 70VDC/250VAC | Rated Current: | 5A-50A |
| Interrupting Capacity: | 2.5KA/70VDC, 100A/250VAC | Certificates: | UR |
| Characteristic: | Time Lag | Environmental Protection: | RoHS, Reach |
| High Light: | HR70 Semiconductor Fuses,2.5KA 5G Communication Fuses,70VDC Semiconductor Fuses |
||

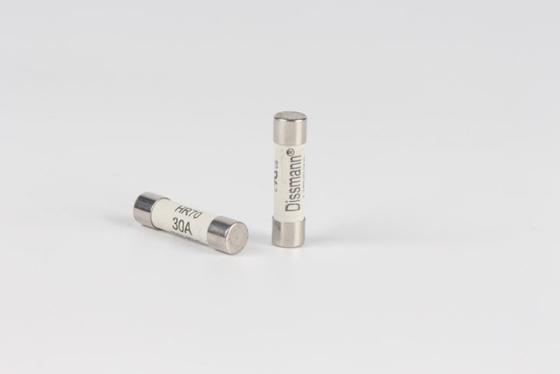

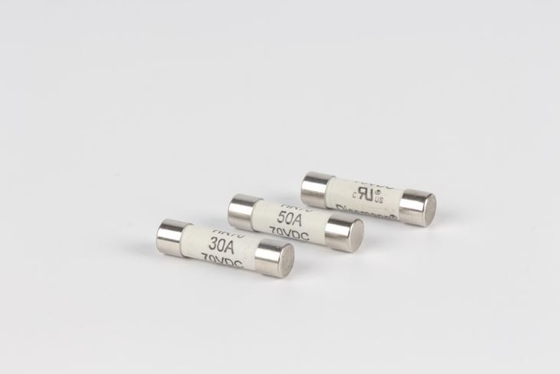

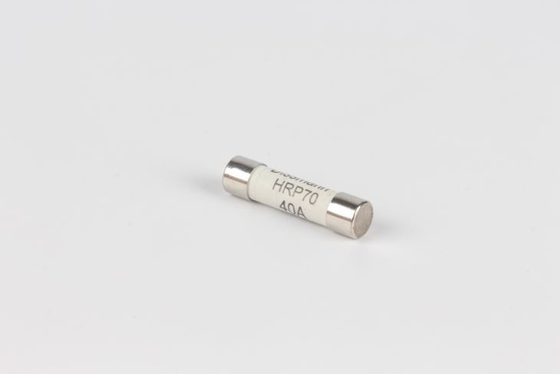

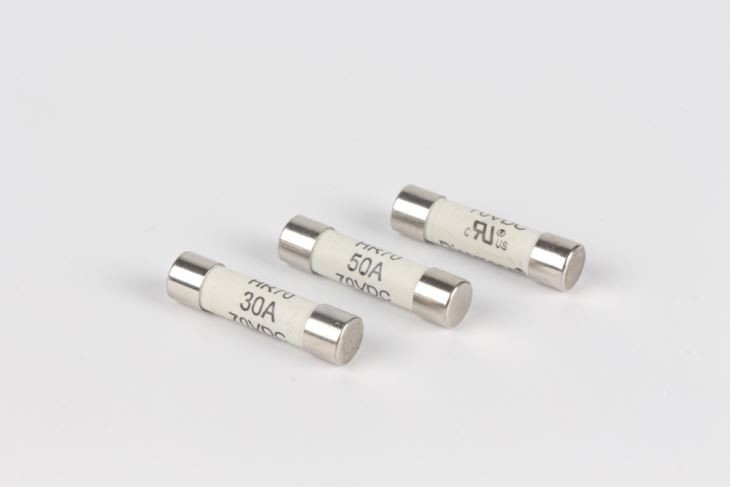

HR70 5G Communication Semiconductor Fuses 2.5KA 70VDC Interrupting
Material:
Noumenon:Ceramic
Pins: Alloy
Features:
Semiconductor Fuses
Many kinds of Semiconductor Fuses
Current rating: 5A-50A
Voltage rating: 70VDC/250VAC
Breaking capacity:2.5KA
Product Presentation:
|
Rated Voltage
|
70VDC/250VAC |
Characteristic
|
Time-lag |
| Rated Current | 20A/30A/40A/50A |
Breaking Capacity
|
DC2500A@70VDC, 100A@250VAC |
|
Meet the Requirement |
UL248, EU and Rosh Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Product type of 5G Communication Semiconductor Fuses
|
Model and product cod |
Rated current |
| HR70-20/HRP70-20 | 20 |
| HR70-30/HRP70-30 | 30 |
| HR70-35/HRP70-35 | 35 |
| HR70-40/HRP70-40 | 40 |
| HR70-50/HRP70-50 | 50 |
Performance standards and characteristics of EV Fuses
| % of Ampere Rating | Ampere Rating | Opening Time at 25℃ |
| 100% |
20A-50A |
4h, Minimum |
| 200% | 2min |
|
Ampere Rating (A) |
100% Voltage drop(mV) |
Energy Integrals I2t (A²sec) |
| 20A | 138 | 1600 |
| 30A | 133 | 6000 |
| 35A | 208 | 10000 |
| 40A | 126 | 10738 |
| 50A | 153 | 13480 |
Product Anatomy
