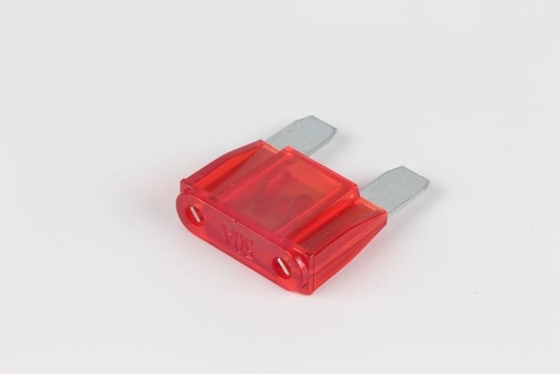

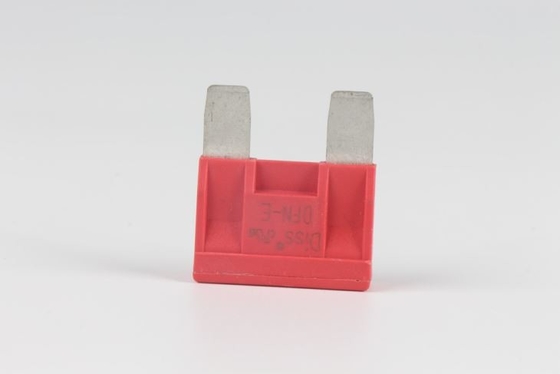

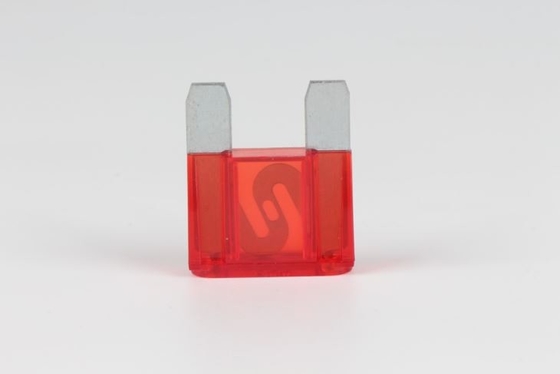

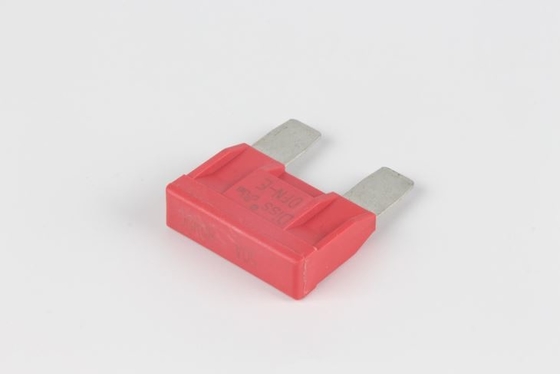

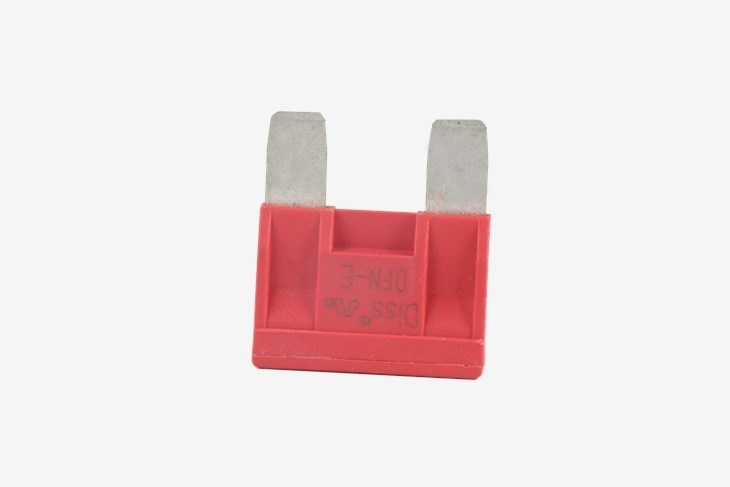

Large Image :  Reach Circuit Protection Semiconductor Fuses Fast Acting 1A Rated Current

Product Details:
Place of Origin: China
Brand Name: Dissmann
Certification: UL
Model Number: DFN-E
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Carton Packing
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs

Reach Circuit Protection Semiconductor Fuses Fast Acting 1A Rated Current

Description
Material: Thermoplastics Color: Red
Rated Voltage: 80VDC Rated Current: 1A-50A
Interrupting Capacity: 1KA Certificates: UR,UL
Characteristics: Fast-acting Environmental Protection: RoHS, Reach
High Light:

Fast Acting Semiconductor Fuses

,

Reach Semiconductor Fuses

,

1A Circuit Protection Fuses

Telecom Circuit Protection Fuses Semiconductor Fuses Automotive Fuse

Rated Voltage

额定电压

80VDC

Characteristic

特性

F快断
Rated Current 额定电流 20A-60A

Breaking Capacity

分断能力

DC1000A

Meet the Requirement

符合要求

UL248-13,ISO8820,

欧盟和RoHS 指令

Remarks

备注

UL



产品外形尺寸(mm)/Overall dimensions of the product(mm)



Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 0



电流特性曲线图/Currentcharacteristiccurve



Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 1



产品型号/Product type



Model

型号

Product code

产品代码

Rated current

额定电流 A

I²t

(A²Sec)

Voltage drop

电压降 mV

Pigment

颜色

DFN-E DFN-E-20 20 3500 100 黄色(Yellow)
DFN-E-30 30 8200 97 绿色(Green)
DFN-E-40 40 14200 93 橙色(Orange)
DFN-E-50 50 22500 90 红色(red)
DFN-E-60 60 23000 95 蓝色(Blue)



性能标准/Performance criteria



测试电流项目

Test current item(A)

电流

Current

最小时间

Minimum time(s)

最大时间

Maximum time(s)

110% 20A-60A 360000s -
150% 20A-60A - 1800s
200% 20A-60A 2s 60s
350% 20A-60A 0.20s 7s
600% 20A-60A 0.040s 1s



UL Certificate



Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 2



Test equipment

Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 3

Production equipment

Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 4
Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 5


Product Anatomy

Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 6

Product Applications

Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 7



Our Certificates

Reach Circuit Protection  Semiconductor Fuses Fast Acting 1A Rated Current 8
