Product Details:
|
| Material: | PC And Metal | Color: | Orange, Red, Blue, Yellow, Transparent, Green |
|---|---|---|---|
| Rated Voltage: | DC32V | Rated Current: | 1A-40A |
| Breaking Capacity: | DC1KA | Usage: | Automotive,battery Charge |
| High Light: | 32V Low Voltage Fuses,1amp Low Voltage Fuses,PC 1amp blade fuse |
||

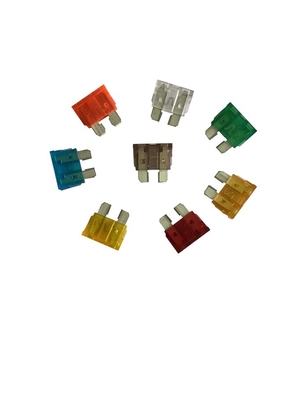

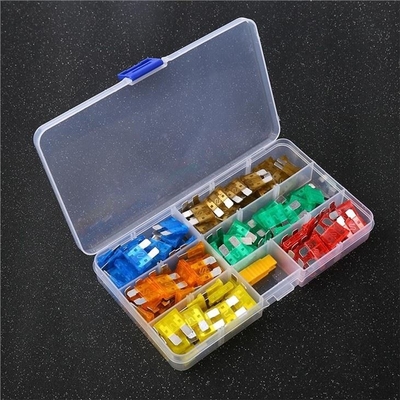

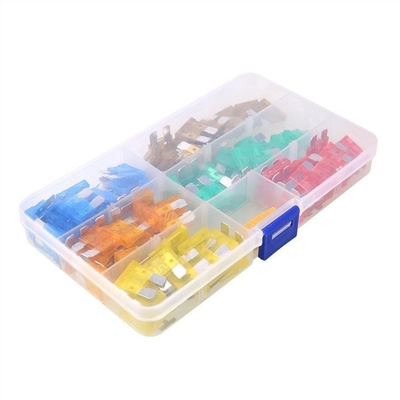

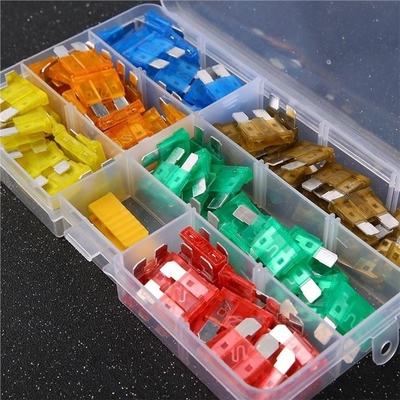

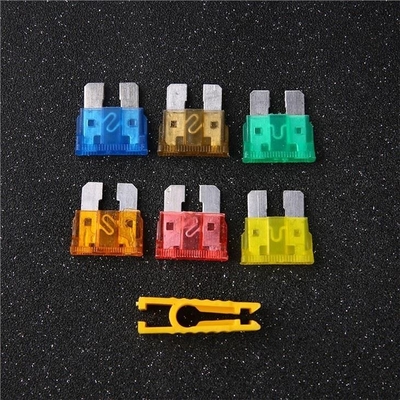

Dissmann Blade Fuses: 32V Low Voltage Fuses , 1amp Blade Fuse PC And Metal Material
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage
|
32VDC |
Characteristic
|
Fast Blowing |
| Rated Current | 1A-40A |
Breaking Capacity
|
DC1000A |
|
Meet the Requirement
|
UL248,ISO8820, EU and Rosh Directive |
Remarks
|
UL |
Overall dimensions of the product(mm)
Product type
|
Model
|
Product code
|
Rated current
|
I²t (A²Sec) |
Voltage drop
|
Pigment
|
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 |
(Orange) |
Current characteristic curve
UL Certifiate
