Product Details:
|
| Material: | Zinc Alloy | Coulor: | Red/purple/Yellow/White |
|---|---|---|---|
| Rated Voltage: | 32 VDC | Rated Current: | 10A |
| Breaking Capacity: | 1KA | UL Listed: | UL Certification |
| Complies With: | ISO | Keyword: | Automotive Fuse |
| High Light: | Automotive Low Voltage Fuses,Zinc Alloy Low Voltage Fuses,10 amp 32v fuse |
||

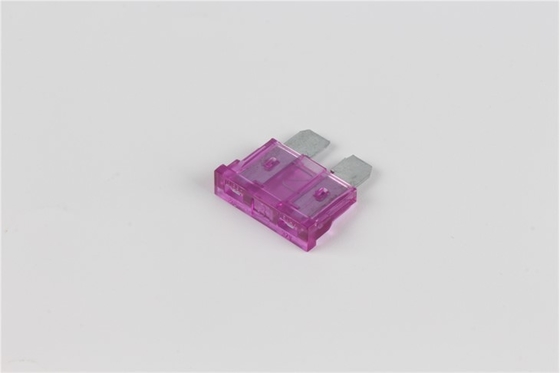

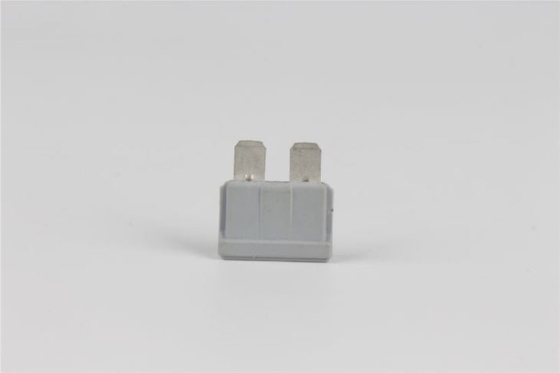

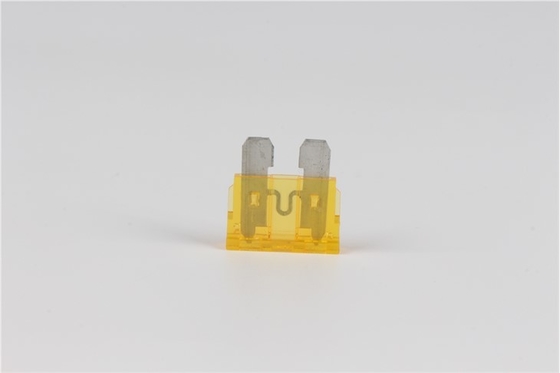

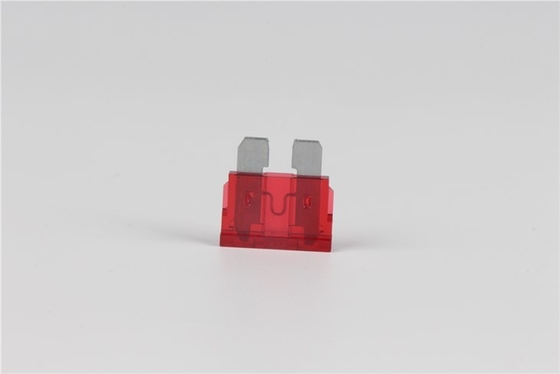

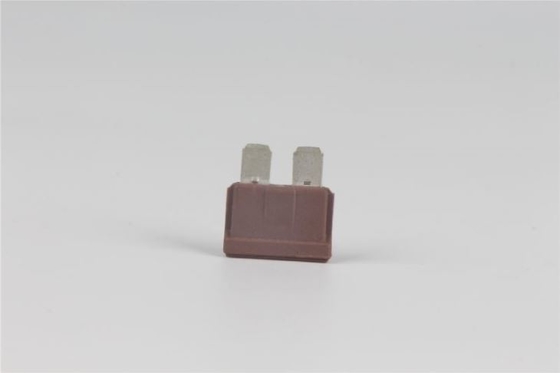

Automotive Low Voltage Fuses , 10 Amp 32v Fuse Zinc Alloy Material
Material:
Noumenon: PBT
Pins: Zinc alloy
Product Presentation:
Material:
Noumenon: PBT
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
32VDC |
Characteristic |
Fast Blowing |
| Rated Current | 1A-40A |
Breaking Capacity |
DC1000A |
|
Meet the Requirement |
UL248,ISO8820, |
Remarks |
UL |
Overall dimensions of the product(mm)
Product type of Automotive Low Voltage Fuses
|
Model |
Product code |
Rated current |
I²t (A²Sec) |
Voltage drop |
Pigment |
| DFN-A | DFN-A-1 | 1 | 0.4 | 174 | (Black) |
| DFN-A-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-A-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-A-4 | 4 | 13 | 135 | (Pink) | |
| DFN-A-5 | 5 | 25 | 125 | (Tan) | |
| DFN-A-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-A-10 | 10 | 110 | 110 | (Red) | |
| DFN-A-15 | 15 | 295 | 102 | (Blue) | |
| DFN-A-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-A-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-A-30 | 30 | 1460 | 86 | (Green) | |
| DFN-A-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-A-40 | 40 | 3200 | 95 | (Orange) |
Current characteristic curve of Automotive Low Voltage Fuse
Product Applications
