Product Details:
|
| Material: | Electric Wood Shell | Colour: | Red,Yellow,Blue |
|---|---|---|---|
| Rated Voltage: | 80VDC | Rated Current: | 20A-60A |
| Breaking Capacity: | DC1KA | Standard: | UL248-13、 ISO8820、ROHS |
| Usage: | Automotive | Keyword: | Car Blade Fuse |
| High Light: | 60A Car Blade Fuses,ISO8820 automotive replacement fuses,60A automotive replacement fuses |
||

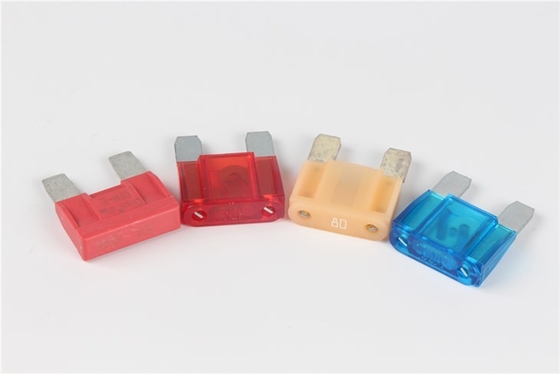

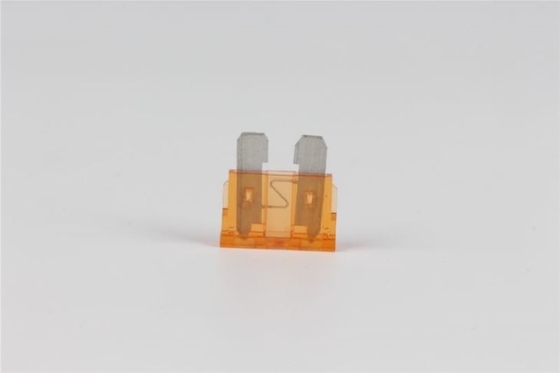

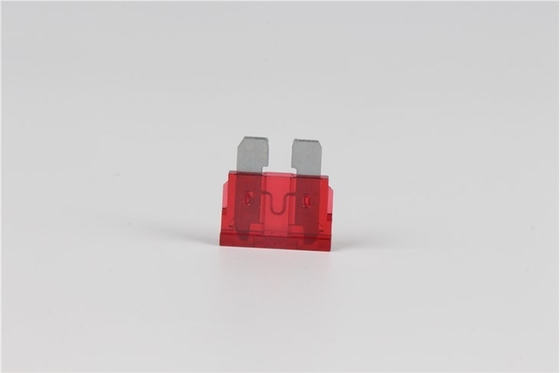

Car Blade Automotive Replacement Fuses 60A Rated Current ISO8820 Standard
Material:
Noumenon:Ceramic
Pins: Alloy
Features:
Pv Inverter Fuse
Many kinds of Pv Inverter Fuse
Current rating: 400A
Voltage rating: 750VDC
Breaking capacity:DC10KA
Product Presentation:
|
Rated Voltage
|
80VDC |
Characteristic
|
Fast Blowing |
| Rated Current | 20A-60A |
Breaking Capacity |
DC1000A |
|
Meet the Requirement |
UL248-13,ISO8820, EU and Rosh Directive |
Remarks |
UL |
Overall dimensions of the product(mm)
Product type
| Model | Product code | Rated current | I²t | Voltage drop | Pigment |
| (A²Sec) | |||||

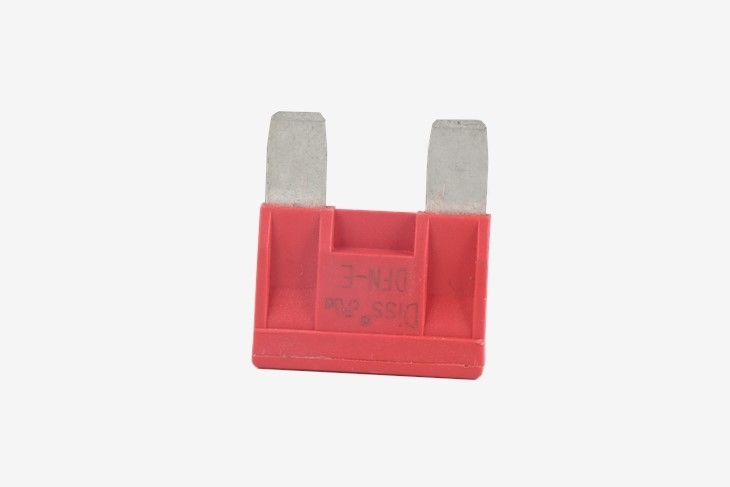

| DFN-E | DFN-E-20 | 20 | 3500 | 100 | (Yellow) |
| DFN-E-30 | 30 | 8200 | 97 | (Green) | |
| DFN-E-40 | 40 | 14200 | 93 | (Orange) | |
| DFN-E-50 | 50 | 22500 | 90 | (red) | |
| DFN-E-60 | 60 | 23000 | 95 | (Blue) |
Currentcharacteristiccurve
Performance criteria
| Test current item(A) | Current | Minimum time(s) | Maximum time(s) |
| 110% | 20A-60A | 360000s | - |
| 150% | 20A-60A | - | 1800s |
| 200% | 20A-60A | 2s | 60s |
| 350% | 20A-60A | 0.20s | 7s |
| 600% | 20A-60A | 0.040s | 1s |
UL Certificate
