Product Details:
|
| Material: | PBT | Colour: | Blown |
|---|---|---|---|
| Rated Voltage: | 80VDC/125VAC | Rated Current: | 1A-40A |
| Interrupting Capacity: | 1KA | Certificates: | UR,UL |
| Characteristics: | Fast-acting | Environmental Protection: | RoHS, Reach |
| High Light: | 125VAC Electric Vehicle Fuses,Wood Shell Electric Vehicle Fuses,40 amp dc fuse |
||
Circuit Protection Accessories Fuse,Automotive Fuse,Mini Fuse
Material:
Noumenon: PBT
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
80VDC |
Characteristic |
Fast Blowing |
| Rated Current | 1A-40A |
Breaking Capacity |
DC1000A |
|
Meet the Requirement
|
UL248,ISO8820, EU and Rosh Directive |
Remarks
|
UL |

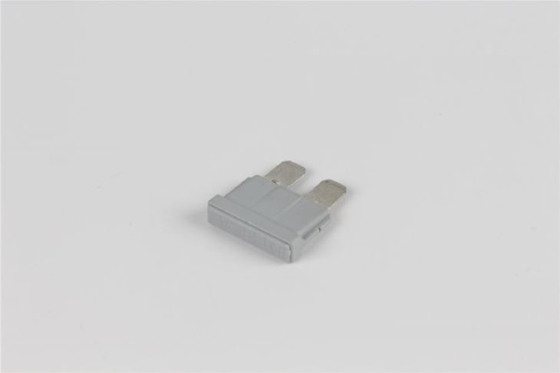

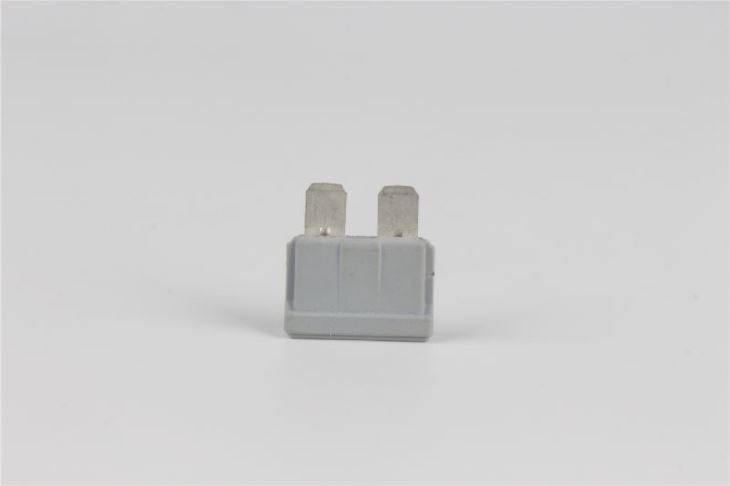

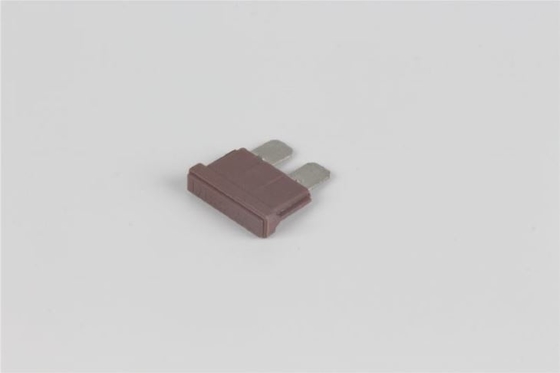

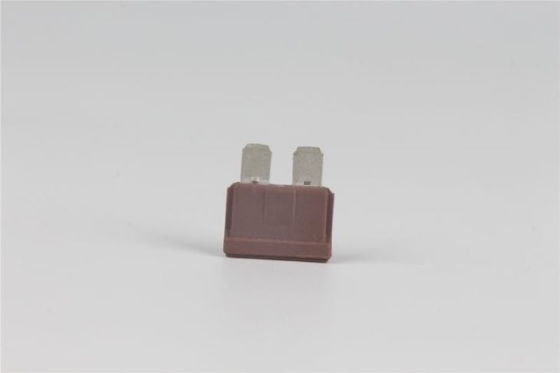

Product Anatomy
Overall dimensions of the product(mm)
Currentcharacteristiccurve
Product type of Electri Vehicle Fuses
| Model | Product code | Rated current | I²t | Voltage drop | Pigment |
| (A²Sec) | |||||
| DFN-H | DFN-H-1 | 1 | 0.4 | 174 | (Black) |
| DFN-H-2 | 2 | 1.5 | 140 | (Gray) | |
| DFN-H-3 | 3 | 6.3 | 137 | (Violet) | |
| DFN-H-4 | 4 | 13 | 135 | (Pink) | |
| DFN-H-5 | 5 | 25 | 125 | (Tan) | |
| DFN-H-7.5 | 7.5 | 56 | 115 | (Brown) | |
| DFN-H-10 | 10 | 110 | 110 | (Red) | |
| DFN-H-15 | 15 | 295 | 102 | (Blue) | |
| DFN-H-20 | 20 | 480 | 96 | (Yellow) | |
| DFN-H-25 | 25 | 1000 | 90 | (Clear) | |
| DFN-H-30 | 30 | 1460 | 86 | (Green) | |
| DFN-H-35 | 35 | 2205 | 88 | (Dark green) | |
| DFN-H-40 | 40 | 3200 | 95 | (Orange) |
| Test current item(A) | Current | Minimum time(s) | Maximum time(s) |
| 110% | 1A-40A | 3600 | ∞ |
| 150% | 1A-40A | 0.5 | 300 |
| 200% | 1A-40A | 0.15 | 20 |
| 350% | 1A-40A | 0.04 | 0.5 |
| 600% | 1A-40A | 0.02 | 0.1 |
Product Applications
