Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 1500VDC | Rated Current: | 2A |
| Breaking Capacity: | DC10KA | Standard: | UL248-13、 IEC60269.6、ROHS |
| Usage: | Solar，PV | Keyword: | Cable Fuse |
| High Light: | 1500VDC high voltage dc fuse,Ceramic high voltage dc fuse,Solar amp power cable fuse |
||

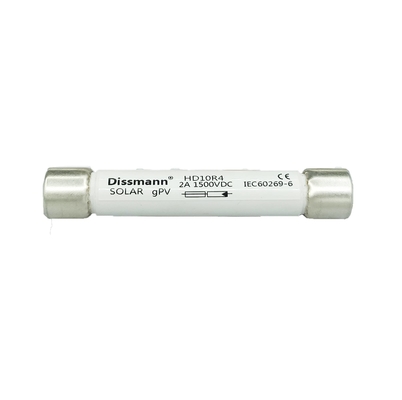

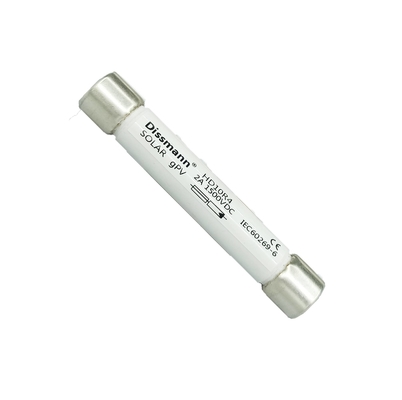

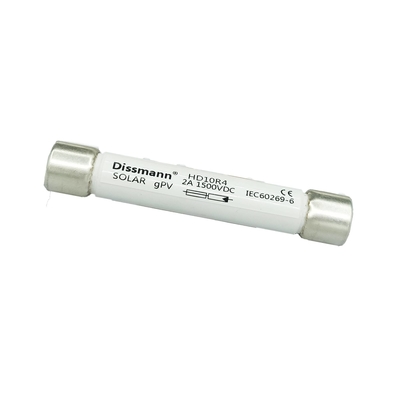

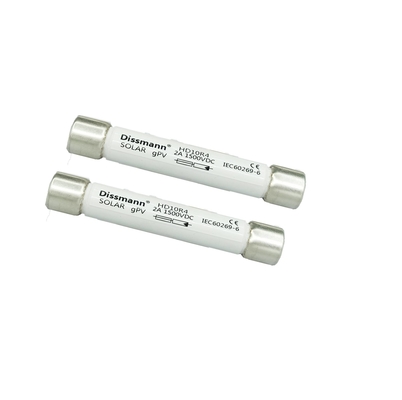

Solar Fuse PV Fuse Low Current Fuse High Voltage Fuse Cable Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
DC1500V |
Characteristic
|
gPV/aR |
| Rated Current | 1A-40A |
Breaking Capacity |
DC10KA |
|
Meet the Requirement |
UL248-13,IEC60269.6
|
Remarks |
UL,TUV |
Overall dimensions of the product(mm)
Product type
| Model |
Rated current (A) |
Rated voltage (V) |
Breaking capacity
|
| HD10R4/HD10W4 | 1A～20A | 1500Vdc | 10KA |
| HD10R4.J03/HD10W4.J03 | 1A～40A | 1500Vdc | 10KA |
| HD10R5 | 1A～20A | 1500Vdc | 10KA |
| HD14R6 | 20A～40A | 1500Vdc | 10KA |
| HDPV5 | 40A | 1500Vdc | 10KA |
Performance criteria
| Blowing current | Fusing time |
| 200% | ＜4min |
| 135% | ＜1h |
| 113% | ＞1h |
| 100% | ＞4h |
Current characteristic curve
Test Equipment
Production Equipment
Our Certificate
