Product Details:
|
| Material: | Ceramic | Colour: | White |
|---|---|---|---|
| Rated Voltage: | 58VDC | Rated Current: | 100A |
| Breaking Capacity: | DC1500A | Standard: | UL248-20、ISO8820、 JASO-D622、ROHS |
| Usage: | Automotive,Charging Pile | Keyword: | Automotive Fuse |
| Highlight: | 100 amp auto fuse,Ceramic 100 amp auto fuse,58VDC low breaking capacity fuse |
||

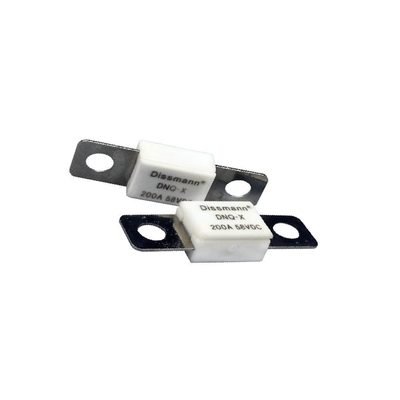

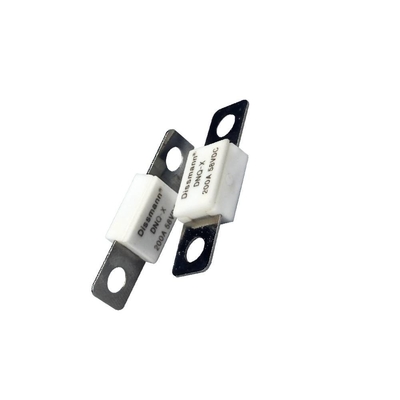

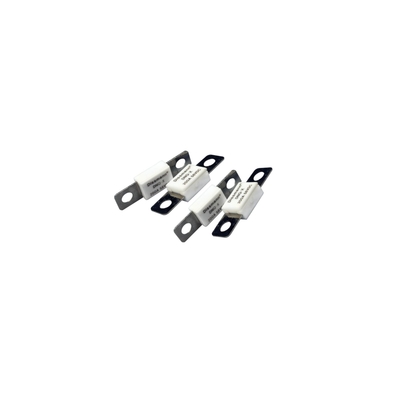

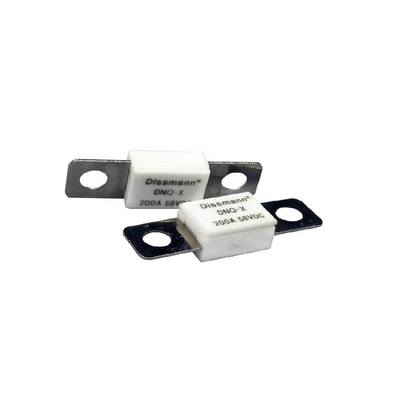

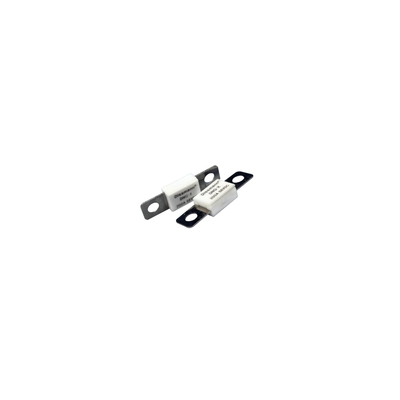

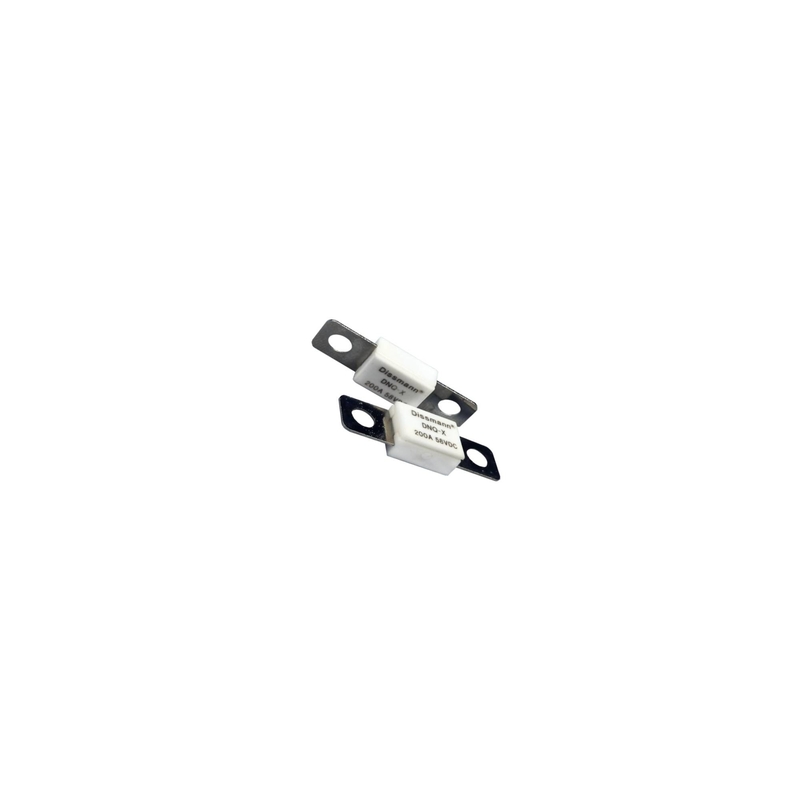

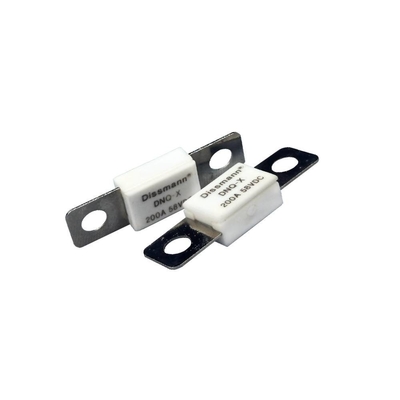

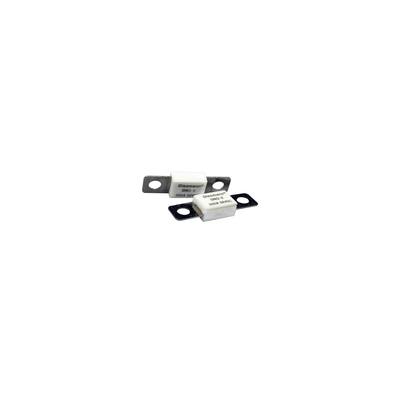

100amps Fuse 58volt DC Fuse Low Breaking Capacity Fuse Automotive Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Features:
Ceramic Automotive Fuses
Many kinds of Ceramic Automotive Fuses
Current rating:100A
Voltage rating: 58VDC
Breaking capacity:DC1500A
Product Presentation:
Rated Voltage | 32VDC/58VDC/80VDC | Type Protection | Time-lag |
| Rated Current | 5A-200A | Breaking Capacity | DC1500A |
Meet the Requirement | UL248-20,ISO8820,JASO-D622,EU and RoHS Directive
| Remarks | UL |
Overall dimensions of the product(mm)
Manufacturing material
Component name
| Material |
Contact the foot
| Kirsite / Copper alloy |
Noumenon |
Ceramics
|
Product type
Model | Rated current | Rated voltage |
Rated voltage
|
| DNQ-A | 5A～200A | 32Vdc | 1.5KA |
| DNQ-X | 5A～200A | 58Vdc | 1.5KA |
| DNQ-H | 5A～200A | 80Vdc | 1.5KA |
| DNM-A | 5A～200A | 32Vdc | 1.5KA |
| DNM-X | 5A～200A | 58Vdc | 1.5KA |
| DNM-H | 5A～200A | 80Vdc | 1.5KA |
